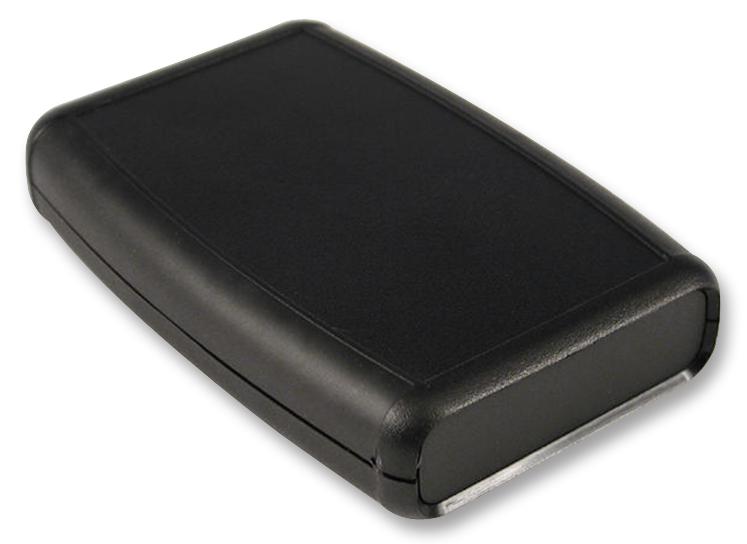

Hammond Manufacturing 1553DBKBK Enclosure Assembly
The enclosure assembly includes a top and bottom cover, a front plastic panel, and four accessories, all molded from UL94-HB rated GP ABS plastic. Designed for easy modification such as milling, drilling, and printing, it features precise internal dimensions including an inner box height of 58.89 mm and width of 80.98 mm at the center. The assembly accommodates a maximum PCB size of 93.20 x 8 mm, with multiple mounting and assembly options. It provides a sturdy, versatile housing suitable for electronic projects requiring reliable protection and customizable features.
Hammond Manufacturing 1553DBKBK Enclosure Assembly Specifications:
- Material: GP ABS plastic UL94-HB rated
- Outer Dimensions: Inner box height 58.89 mm, width 80.98 mm at center
- Inner Box Length: 145.7 mm
- Maximum PCB Size: 93.20 x 8 mm
- Enclosure includes: top cover, bottom cover, front panel, four accessories
- Factory modifications available: milling, drilling, printing
- Solid models available in STEP or IGES formats
- Applicable accessories: cover screws, PCB board screws, belt or pocket clip
- Screw Sizes: #4 x 5/16 inch self-tapping oval head screws (15.9 mm)
- P.C. Board Screws: #4 x 1/4 inch self-tapping (6.4 mm)
- Environmental Rating: UL94-HB plastic materials
- Manufactured by Hammond Manufacturing, customizable per customer needs
Buy the Buy Hammond Manufacturing Enclosure Part Number 1553DBKBK Online
Purchase the Hammond Manufacturing enclosure assembly featuring top and bottom covers, a front panel, and versatile accessories. Made from UL94-HB rated GP ABS plastic, this enclosure offers durability, easy modifications like milling and drilling, and precise internal dimensions suitable for various PCB sizes up to 93.20 mm x 8 mm. Its sturdy design ensures excellent protection of electronic components while allowing customization to fit specific project needs. Order online today for a reliable, high-quality enclosure solution that supports professional and hobbyist applications alike.
Buy Hammond Manufacturing 1553DBKBK enclosure now and enjoy a robust, customizable housing solution for your electronic projects, with easy assembly and reliable protection.
