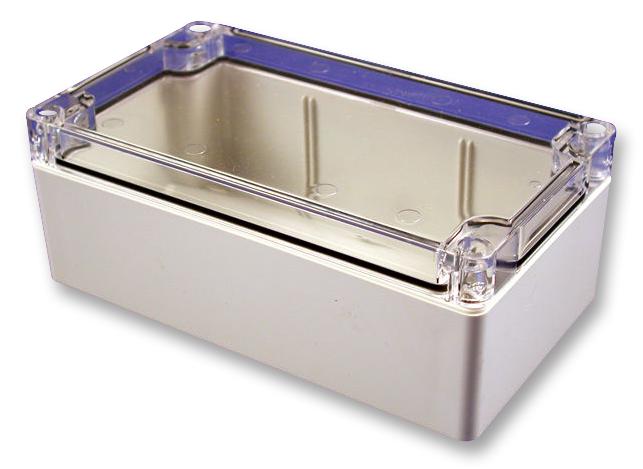

Hammond Manufacturing 1554E2GYCL Polycarbonate Enclosure
The Hammond 1554E2GYCL enclosure is a clear or smoke polycarbonate box designed for general-purpose applications, offering UL 508 compliance. It features a robust construction with steel inner panels, molded in polycarbonate with a wall thickness of approximately 4.00 mm, providing durability against impacts and environmental factors. The enclosure includes stainless steel mounting inserts, and is suitable for factory modifications like milling, drilling, or printing. It is ideal for electronic or control components requiring protective, transparent housing with easy access and reliable sealing for industrial or commercial use.
Hammond Manufacturing 1554E2GYCL Polycarbonate Enclosure Specifications:
- Material: Polycarbonate with steel inner panel
- Color Options: Clear, Smoke
- Wall Thickness: approximately 4.00 mm
- Dimensions: 98.73 mm x 77.47 mm x 58.01 mm
- Mounting: M4 stainless steel inserts (24 holes)
- Ingress Protection: NEMA 4, 4X certified
- UL Approval: UL 508 compliant for industrial control panels
- Enclosure Type: General purpose, factory modifiable
- Additional Features: ABS version available, gasket included, factory options for milling, drilling, printing
- Screw Torque: Recommended cover screw torque 2.5 lb-in (30 cN-m)
Buy the Buy Hammond Enclosure Part Number 1554E2GYCL Online
Order the Hammond 1554E2GYCL polycarbonate enclosure online today for reliable protection of electronic and control components in industrial environments. This impact-resistant, UL 508-approved box offers excellent transparency and durability, with customizable factory modifications such as milling and drilling. Its sturdy steel inner panels and stainless steel mounting inserts ensure long-lasting performance and ease of installation. Whether for commercial, industrial, or automation applications, our online purchase provides quick access to a high-quality, compliant enclosure that meets demanding specifications.
Get Hammond enclosure 1554E2GYCL today—designed for durability, impact resistance, and industrial control applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1554E2GYCL?
You can click on the BUY or RFQ button to purchase 1554E2GYCL from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1554E2GYCL?
You can download the 1554E2GYCL datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1554E2GYCL?
Hammond Manufacturing
