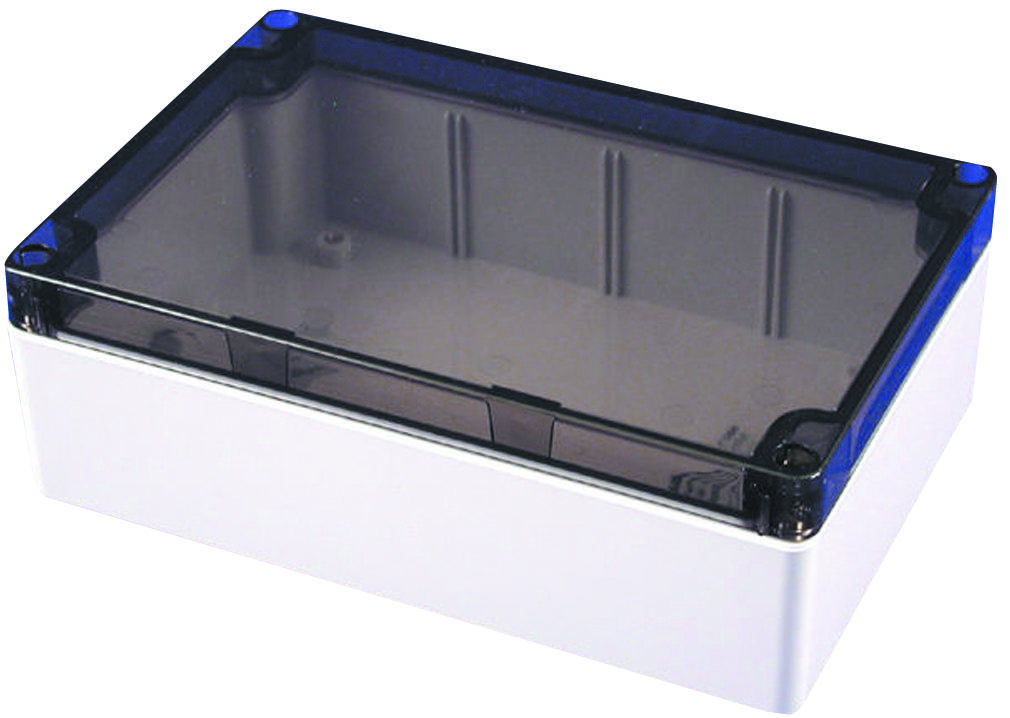

Hammond Manufacturing 1554H2GYSL Watertight Enclosure
The 1554H2GYSL is a watertight, smoked polycarbonate enclosure with a transparent lid, ideal for mounting printed circuit boards or DIN rail-mounted components. The smoked, transparent lid provides clear visibility of internal components while offering a modern aesthetic. The enclosure features a gasketed lid with a two-piece tongue and groove design that protects against oil, dust, and water ingress. It is secured with self-captivating M4 stainless steel screws threaded into stainless steel bushings, allowing for easy repeated assembly and disassembly. The enclosure has a UL94V-0/UL94-HB flammability rating and includes all stainless steel hardware to prevent corrosion. The gasket is factory poured using high-temperature silicone rubber. Suitable for industrial applications, it offers ratings of NEMA 4, 4X, 12, and 13. The package includes the enclosure box, lid, four cover screws, and a preformed silicone gasket.
Hammond Manufacturing 1554H2GYSL Watertight Enclosure Specifications:
- Material: Polycarbonate
- Color: Smoke grey
- Flammability Rating: UL94V-0/UL94-HB
- Ingress Protection: NEMA 4, 4X, 12, 13
- Gasket Material: High-temperature silicone rubber
- Hardware: Stainless steel screws and bushings
- Screw Type: M4 stainless steel, self-captivating
- Lid Type: Transparent with tongue and groove design
- Overall Dimensions: 155.00 mm x 109.50 mm x 87.00 mm
- Wall Thickness: Approximately 3.2 mm
- Suitable for mounting printed circuit boards and DIN rail components
- Includes enclosure, lid, four cover screws, gasket
- Corrosion resistant and suitable for harsh environments
Buy the Buy Hammond Enclosure Part Number 1554H2GYSL Online
Purchase the Hammond 1554H2GYSL watertight polycarbonate enclosure online for reliable protection of electronic components in industrial environments. Featuring a smoked, transparent lid with a gasketed two-piece tongue and groove design, it offers excellent resistance against oil, dust, and water ingress. The enclosure comes with rustproof stainless steel hardware, including self-captivating M4 screws, and is rated UL94V-0/UL94-HB for flammability. Suitable for NEMA 4, 4X, 12, and 13 applications, this enclosure ensures durability, visibility, and easy assembly—order today for long-lasting, corrosion-resistant protection.
Get Hammond 1554H2GYSL today—built for water resistance and quick assembly with stainless steel hardware.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1554H2GYSL?
You can click on the BUY or RFQ button to purchase 1554H2GYSL from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1554H2GYSL?
You can download the 1554H2GYSL datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1554H2GYSL?
Hammond Manufacturing
