Hammond Manufacturing 1554K2GYCL Watertight enclosure

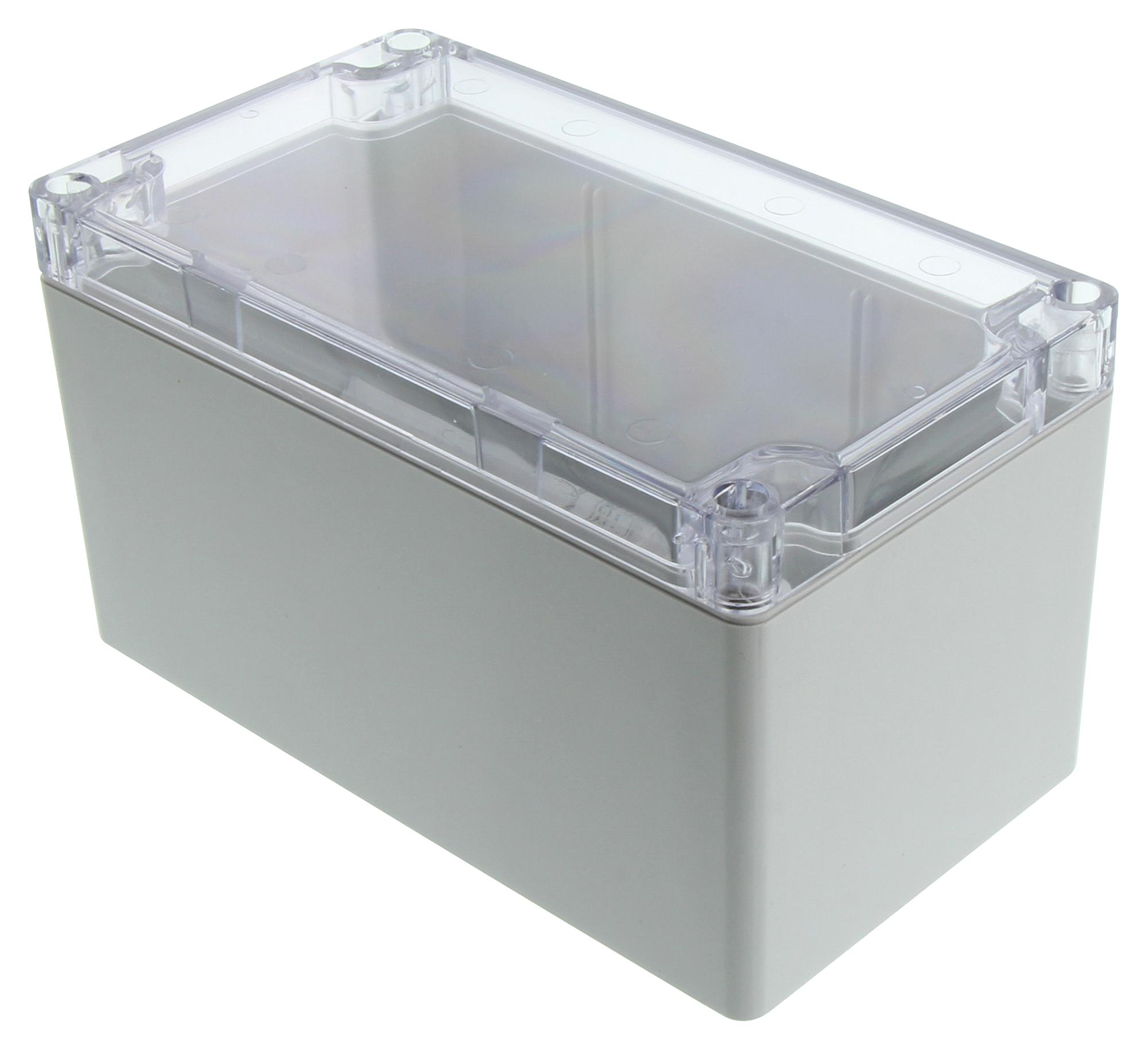

The 1554K2GYCL is a transparent polycarbonate enclosure designed for outdoor and indoor use, providing excellent protection against dust, water, and oil. It features a gasketed lid with a tongue-and-groove design, secured with stainless steel screws threaded into bushings for durability. The enclosure supports mounting printed circuit boards and DIN rail components, with internal mounting tabs, brass inserts, and vertical PCB guides. It meets NEMA 4, 4X, 12, and 13 ratings, with a UL94V-0 flammability rating for polycarbonate and UL94-HB for ABS options. Suitable for industrial applications, the enclosure ensures reliable sealing and easy maintenance.
Hammond Manufacturing 1554K2GYCL Watertight enclosure Specifications:
- Material: Polycarbonate with UV stabilization, UL94V-0 rated, and ABS options UL94-HB rated
- Color: Light gray (RAL 7035)
- Protection Ratings: NEMA 4, 4X, 12, 13, IP68 (polycarbonate); IP66 (ABS)
- Lid Fastening: M4 stainless steel screws threaded into stainless steel bushings
- Gasket Material: High-temperature, UL listed silicone rubber
- Mounting Features: Internal DIN rail mounting tabs, threaded brass inserts, vertical PCB guides
- Hardware: All stainless steel to prevent corrosion, self-captivating screws for easy assembly
- Applications: Suitable for PCB and DIN rail components in industrial environments, outdoor or indoor use
- Sealing: Two-piece tongue-and-groove gasketed lid with reliable sealing for dust, water, and oil protection
- Dimensions: Varies by size, designed for maximum internal mounting capacity
Buy the Hammond Series 1554 Watertight Enclosure: 1554K2GYCL
Order the Hammond Series 1554K2GYCL watertight polycarbonate enclosure online today to ensure optimal protection for your electronic components. Crafted from UV-stabilized polycarbonate, it offers excellent outdoor durability and superior sealing with a gasketed tongue-and-groove lid. The enclosure is ideal for mounting printed circuit boards and DIN rail components, featuring internal mounting options and corrosion-resistant stainless steel hardware. Whether for industrial or outdoor applications, this UL-rated enclosure combines strength, security, and ease of assembly for dependable performance in challenging environments.
Buy Hammond Series 1554K2GYCL polycarbonate enclosure now and experience unmatched durability, reliable sealing, and easy assembly for industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1554K2GYCL?
You can click on the BUY or RFQ button to purchase 1554K2GYCL from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1554K2GYCL?
You can download the 1554K2GYCL datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1554K2GYCL?
Hammond Manufacturing
