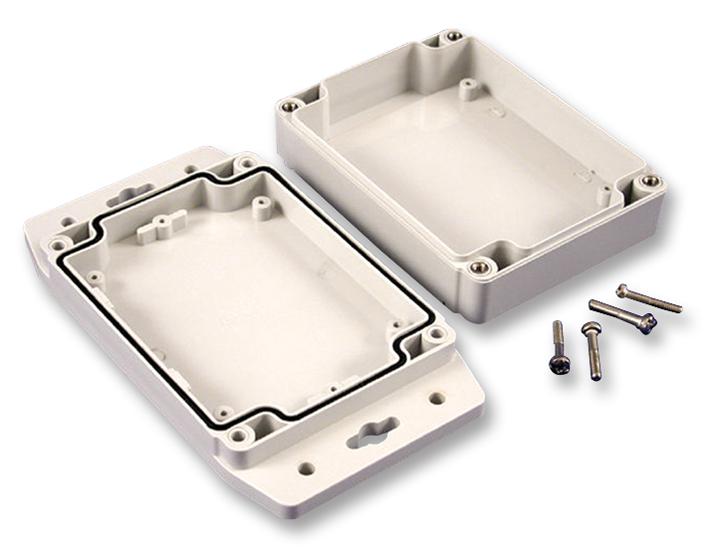

Hammond Manufacturing 1555F2F42GY Industrial Enclosure
The Hammond 1555F2F42GY enclosure is a versatile, NEMA 4 and 4X rated box made from durable polycarbonate material with UL 508 approval, suitable for industrial electrical applications. It features precise dimensions for easy integration, including an internal depth of 85 mm and cover screw torque recommendations of approximately 2.5 in-lb. The enclosure supports varied factory modifications such as milling and printing, making it customizable for specific project needs. Its robust construction ensures long-lasting performance in demanding environments, offering reliable protection for electronic components and control systems.
Hammond Manufacturing 1555F2F42GY Industrial Enclosure Specifications:
- Material: Polycarbonate
- NEMA Rating: 4, 4X
- UL Rating: UL 508 approved
- Dimensions: 119.95 mm x 111.00 mm x 85.00 mm (L x W x Depth)
- Enclosure Inside View: 85 mm inside depth, 62.50 mm inner box depth
- Cover screw torque: approximately 2.5 in-lb (30 cNm)
- Inlay Length: 160.79 mm
- Inlay Width: 42.00 mm
- Internal Box Depth: 85 mm
- Operating Temp Range: Suitable for industrial environments
- Factory Modifications: Milling, drilling, printing supported
- Variants: 6X for step or ICES models, Polycarbonate version UL 508 approved
- Compatible with silicone gasket for sealing
- Cover screws: M4 x 20 mm stainless steel
- Indoor and outdoor use, resistant to corrosion and impact
Buy the Hammond Series Enclosure: Enclosure Assembly 1555F2F42GY
Order the Hammond 1555F2F42GY industrial enclosure online today for reliable, UL 508 approved protection of electrical and control systems. This durable polycarbonate box features NEMA 4 and 4X ratings, ensuring excellent resistance to environmental factors such as water, dust, and corrosion. It is customizable through factory modifications like milling, drilling, and printing to suit your specific requirements. With its precise dimensions, sturdy construction, and sealing options, this enclosure guarantees long-term performance in demanding industrial environments. Perfect for electrical panels and electronic devices that require robust protection.
Get Hammond enclosure 1555F2F42GY today—built for industrial protection and long-lasting durability.
