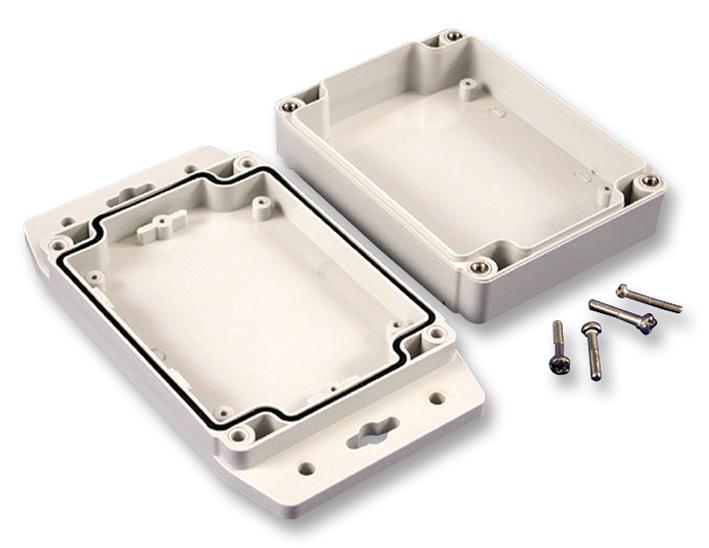

Hammond Manufacturing 1555FF17GY Industrial Enclosure
The enclosure assembly is a versatile, NEMA 4, 4X-rated polycarbonate or ABS enclosure designed for industrial applications. It features a solid model available in STEP or IGES formats, with factory-modifiable options such as milling, drilling, and printing. The enclosure includes a gasket, Tanged lid, and screws, with UL 508 approval for polycarbonate versions. It offers reliable protection with a recommended cover screw torque of 2.5 lb-in, and is suitable for use in demanding environments requiring durability and safety.
Hammond Manufacturing 1555FF17GY Industrial Enclosure Specifications:
- Material: Polycarbonate or ABS
- NEMA Ratings: 4, 4X
- UL Approval: Polycarbonate version UL 508
- Dimensions: Typical length 160.79 mm (6.33 in), width 77.00 mm (3.031 in), height varies
- Wall Thickness: 3.50 mm (thru 4X)
- Screw Type: M4 x 20 mm stainless steel
- Gasket: Silicone, installed for sealing
- Product Features: Factory modifications available, molded with Tanged lid, includes four cover screws
- Screw Torque: Recommended 2.5 lb-in (30 cN-m)
- Design: Factory assembled boxed enclosure for industrial electronics
- Additional Info: Solid models in STEP or IGES; custom modifications available
Buy the Hammond 1555FF17GY – Reliable Enclosure for Industrial Applications
Secure your electronic components with this high-quality industrial enclosure designed for demanding environments. Crafted from durable polycarbonate or ABS, it features NEMA 4 and 4X ratings, UL approval, and factory-customizable options. The enclosure includes a silicone gasket for optimal sealing, a Tanged lid, and robust stainless steel screws. Its versatile design ensures reliable protection against dust, water, and impact, making it ideal for control panels, automation systems, and outdoor installations. Easy to assemble and maintain, it delivers exceptional value for industrial applications.
Buy Hammond 1555FF17GY now and ensure maximum protection and durability for your industrial control and electronic projects.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1555FF17GY?
You can click on the BUY or RFQ button to purchase 1555FF17GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1555FF17GY?
You can download the 1555FF17GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1555FF17GY?
Hammond Manufacturing
