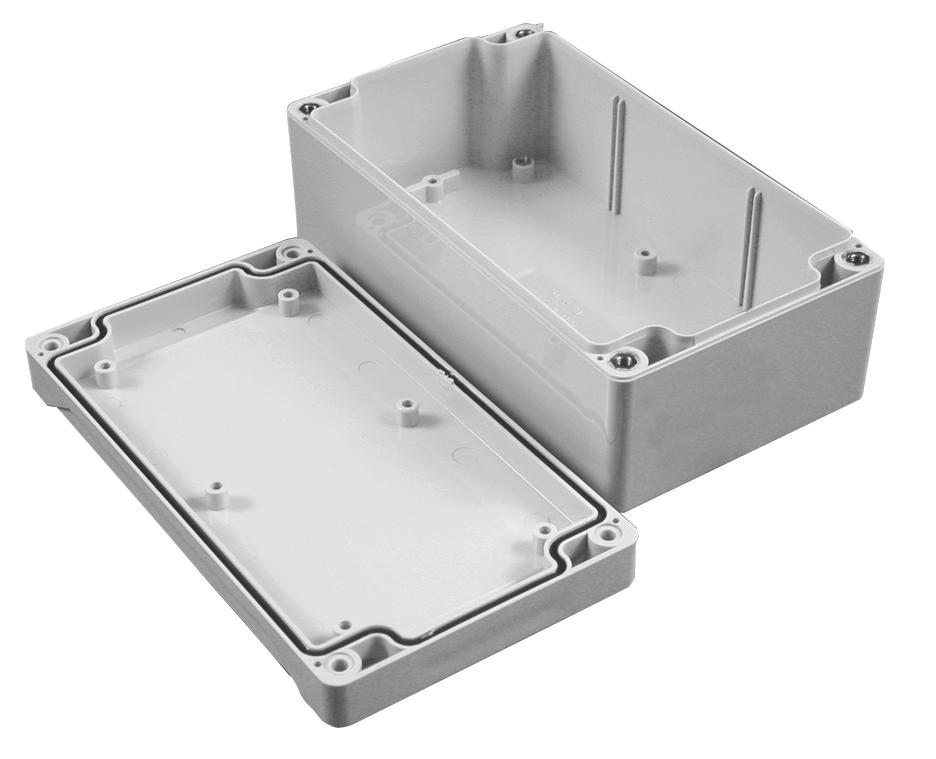

Hammond Manufacturing 1555N2GY Waterproof Enclosure
The 1555N2GY is a waterproof polycarbonate enclosure with a styled lid, designed for mounting printed circuit boards or DIN rail-mounted components. It features a gasketed lid with a two-piece tongue and groove design, providing protection against oil, dust, and water ingress. The lid is secured with self-captivating M4 stainless steel screws threaded into integral stainless steel bushings, allowing for repeated assembly and disassembly. Made with stainless steel hardware to prevent corrosion, this enclosure has a UL94-V0 flammability rating, a smooth recessed surface suitable for a membrane keypad or label, and delivers NEMA 4, 4X, 12, and 13 protection levels. The gasket is factory poured using high-temperature silicone rubber. It is ideal for industrial applications. Included in the package are the enclosure box, styled lid, four cover screws, and a preformed silicone gasket.
Hammond Manufacturing 1555N2GY Waterproof Enclosure Specifications:
- Material: Polycarbonate
- Enclosure Type: Waterproof, NEMA 4, 4X, 12, 13
- Flammability Rating: UL94-V0
- Protection Level: Oil, dust, water ingress protection
- Lid: Styled with tongue and groove design
- Sealing: Factory poured silicone gasket (high-temperature silicone rubber)
- Screws: Self-captivating M4 stainless steel, threaded into stainless steel bushings
- Hardware: Corrosion-resistant stainless steel
- Dimensions: Dimensions approximate 120mm x 105mm x 56mm (see detailed datasheet)
- Surface: Smooth recessed for keypad or labels
- Assembly: Repeated mounting and dismounting possible
- Included: Enclosure box, styled lid, four cover screws, silicone gasket
Buy the Hammond Series 1555N2GY Waterproof Enclosure: 1555N2GY
Order the Hammond 1555N2GY waterproof enclosure online today for your industrial and electronic project needs. Featuring a stylish polycarbonate design with a gasketed lid, stainless steel hardware, and certified protection levels including NEMA 4X, 12, and 13, this enclosure ensures durability in harsh environments. It is ideal for mounting printed circuit boards, DIN rail components, or membrane keypads. The factory poured silicone gasket guarantees oil, dust, and water ingress resistance, making it perfect for outdoor or demanding industrial applications. Easy to assemble, disassemble, and maintain, buy now for reliable performance.
Get Hammond 1555N2GY waterproof enclosure today—built for industrial protection and long-lasting durability.
