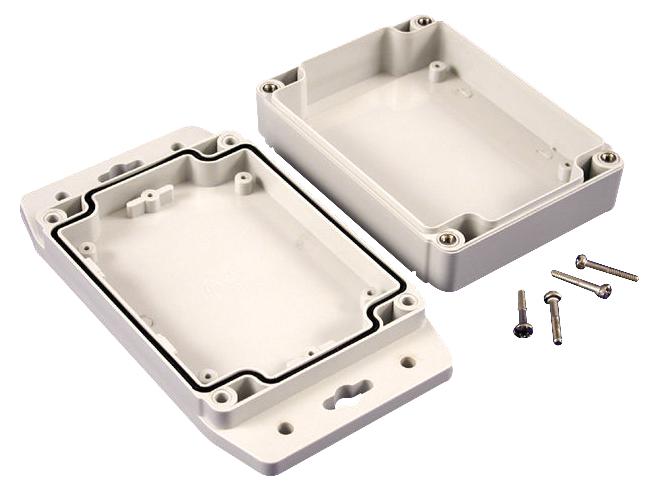

Hammond Manufacturing 1555NF17GY Industrial Control Enclosure
This enclosure offers a robust solution for industrial and electronic applications, featuring NEMA 4 and 4X ratings for superior protection against dust, water, and harsh environments. Constructed from durable ABS and polycarbonate materials, it supports customization such as milling, drilling, and printing. The enclosure includes preformed silicone gaskets, threaded mounting holes, and stainless steel screws for secure assembly. It measures approximately 120 mm x 98 mm, with inlay depth of 6.00 mm, and is UL 508 approved in polycarbonate version, making it ideal for industrial control panels, electronic devices, and deployment in challenging environments.
Hammond Manufacturing 1555NF17GY Industrial Control Enclosure Specifications:
- Material: ABS and Polycarbonate
- NEMA Rating: 4 and 4X
- UL Approval: Polycarbonate version UL 508
- Dimensions: 120 mm x 98 mm x 60.089 mm (width x height x depth)
- Inlay Depth: 6.00 mm
- Inlay Width: 47.20 mm
- Inlay Length: 160.79 mm
- Threaded Mounting Holes: M4 x 20 mm (x4)
- Gasket: Preformed silicone gasket
- Screw Type: M4 stainless steel screws
- Finish: Factory modified options available
- Operating Environment: Suitable for industrial control, electronics, harsh environments
- Certifications: UL 508 (polycarbonate version), NEMA 4, 4X
Buy the Hammond 1555NF17 U–Reliable Industrial Enclosure for Control and Electronics
Secure your electronic components and control systems with the Hammond 1555NF17 industrial enclosure. Made from durable ABS and polycarbonate, it offers NEMA 4 and 4X ratings for protection against dust, water, and harsh conditions. Ideal for industrial environments, the enclosure supports customization through milling, drilling, and printing. It features preformed silicone gaskets, stainless steel screws, and threaded mounting holes for easy assembly. UL 508 approved in polycarbonate, ensuring compliance with industry safety standards. Order online today to safeguard your critical equipment.
Order your Hammond 1555NF17 enclosure today and ensure reliable protection for industrial control and electronic projects.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1555NF17GY?
You can click on the BUY or RFQ button to purchase 1555NF17GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1555NF17GY?
You can download the 1555NF17GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1555NF17GY?
Hammond Manufacturing
