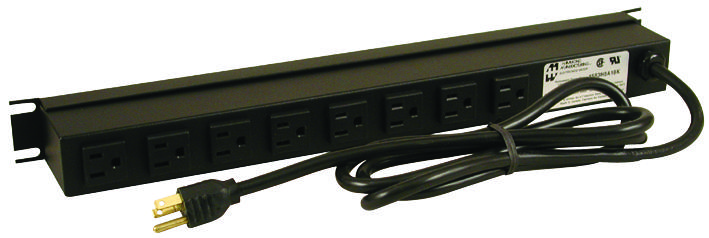

Hammond Manufacturing 1583H8A1BK Power Distribution Outlet Strip
The 1583H8A1BK is a rear-mounted receptacle outlet strip designed for power distribution. It features a lighted on/off switch or red pilot light to indicate when power is on. The model with six outlets includes two outlets with extra spacing to accommodate larger plugs or transformers. It comes with a heavy 14-gauge wire cord and offers both NEMA 5-15P straight blade and NEMA L5-15P locking type connectors. Suitable for industrial and power management applications.
Hammond Manufacturing 1583H8A1BK Power Distribution Outlet Strip Specifications:
- Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
- Includes 15 Amp, 125 VAC circuit breaker to prevent overload.
- Available in black or grey powder coat finish.
- Overall dimensions: height 1.72 inches, width 19.00 inches, depth 2.66 inches.
- Number of outlets: 8, with options for straight or locking NEMA plugs.
- Mounting: 1U horizontal 19" rackmount installation.
- Standards: CSA certified, UL recognized
- Receptacles: NEMA 5-15R and L5-15R types, with extra spacing for transformers.
- Switch: Lighted on/off switch with optional red pilot light.
- Rack units: 1U
Buy the Hammond Series 1533 Power Distribution Outlet Strip: 1583H8A1BK
Buy the Hammond Series 1533 Power Distribution Outlet Strip, model 1583H8A1BK, online today. Featuring rear-mounted receptacles, a heavy-duty 14-gauge cord, and NEMA 5-15P/L5-15P connectors, it ensures safe and efficient power distribution. Designed with a lighted on/off switch or red pilot light, it is perfect for industrial environments. Its rugged construction, CSA and UL certifications, and options for straight or locking plugs make it a reliable choice. Click now to enhance your power management solutions online with confidence.
Order your Hammond Series 1533 power distribution outlet strip, model 1583H8A1BK, today and ensure reliable power management for industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1583H8A1BK?
You can click on the BUY or RFQ button to purchase 1583H8A1BK from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1583H8A1BK?
You can download the 1583H8A1BK datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1583H8A1BK?
Hammond Manufacturing
