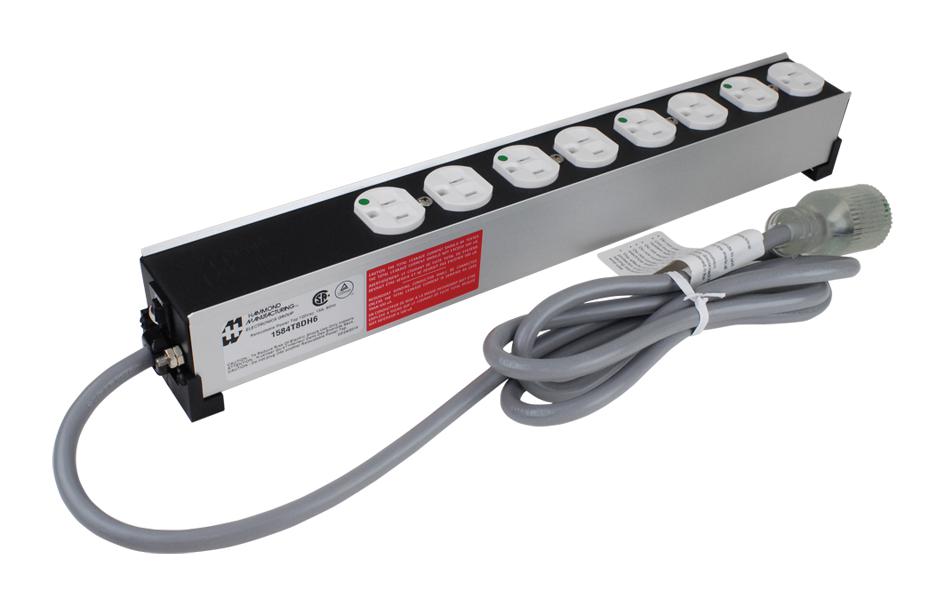

Hammond Manufacturing 1584T8DH6 Heavy-Duty Hospital-Grade Power Strip
The 1584T8DH6 is a heavy-duty eight-outlet power strip housed in a sturdy extruded aluminum case with a black powder-coated steel cover. Designed for institutional and healthcare environments, it features hospital-grade white receptacles, a high-quality line cord, and a grounded plug. The device exceeds NEMA standards for low leakage ground return and impact resistance, ensuring continuous grounding even under physical shocks when used with properly grounded outlets. The white hospital-grade outlets are securely mounted and interconnected with solid bus bars, which are double connected via convection pressure-sensitive clamps and safety screws for maximum safety. It includes a heavy-duty 14-gauge cord (14/3 SJT) suitable for extreme temperature conditions and an integrated clear molded hospital-grade plug. An additional grounding stud on the case provides options for external grounding. Mounting feet with keyhole slots allow temporary workstation setup if required. A 15A/125V resettable circuit breaker protects against line overloads.
Hammond Manufacturing 1584T8DH6 Heavy-Duty Hospital-Grade Power Strip Specifications:
- Receptacles: NEMA 5-15R-HG
- Cord: Heavy duty 14 gauge, 14/3 SJT, suitable for extreme temperatures
- Outlets: 8 hospital-grade white receptacles
- Cord Length: 6 ft or 12 ft options available
- Circuit Breaker: 15 amp, 125 volt resettable
- Housing: Extruded aluminum case with black powder-coated steel cover
- Additional Grounding: Provided via grounding stud on case
- Mounting: Feet with keyhole slots for temporary setup
- Certifications: CSA certified (C22.2 No. 21-95 and No. 42-99), UL60601-1, UL 1363, TUVus certified
- Overall Dimensions: Height 2.33 inches, Width approx. 2.12-2.13 inches, Length options from 10.18 to 16.51 inches based on model
- Safety Features: Double bonded bus bars, convection pressure clamps, safety screw
- Designed for: Institutional, healthcare, impact resistance, low leakage ground return
Buy the Hammond 1584T8DH6 – Reliable Power Strip for Healthcare and Industrial Applications
Enhance your professional healthcare or industrial setup with the Hammond 1584T8DH6 heavy-duty power strip featuring eight hospital-grade outlets, durable aluminum housing, and a resettable circuit breaker. Its impact-resistant design and superior grounding ensure safety and reliability under demanding conditions. Equipped with a heavy-duty 14/3 SJT cord, it is perfect for extreme temperature environments. The quick mounting feet and external grounding stud allow flexible setup options. Purchase online now for a trusted solution ensuring safety, durability, and compliance with industry standards.
Order your Hammond Series 1584T8DH6 power strip today and equip your healthcare or industrial facility with dependable, high-quality power distribution solutions.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1584T8DH6?
You can click on the BUY or RFQ button to purchase 1584T8DH6 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1584T8DH6?
You can download the 1584T8DH6 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1584T8DH6?
Hammond Manufacturing
