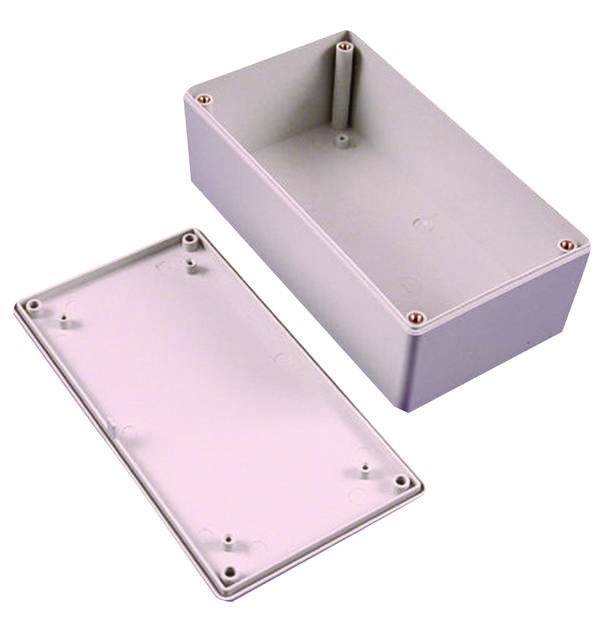

Hammond Manufacturing 1591XXDGY Electronics Enclosure
The 1591XXDGY is a versatile, flame-retardant ABS plastic enclosure designed for horizontal PCB mounting. It features a robust tongue-and-groove lid-to-box construction, providing effective dust and water splash protection. The enclosure is secured with M3 x 10mm Phillips screws threaded into integral brass bushings, enabling easy assembly and disassembly for maintenance. Molded-in PCB standoffs enhance stability. UL94V-0 rated for flame resistance, it is ideal for industrial environments. The package includes the enclosure, lid, screws, and brass inserts, making it a reliable choice for electronics projects.
Hammond Manufacturing 1591XXDGY Electronics Enclosure Specifications:
- Material: ABS plastic with UL94V-0 flammability rating
- Dimensions: Width 67.25 mm, Height 54.25 mm, Depth 145.00 mm
- Wall Thickness: 2.00 mm
- Lid Securement: M3 x 10mm Phillips screws with brass bushings
- Protection Level: Dust and water splash resistant
- Molded-in PC board standoffs inside enclosure and lid
- Enclosure can be factory modified with milling, drilling, printing
- Available in solid models in STEP or IGES formats
- Color: Gray (RAL 7035)
Buy the Hammond Series 1591XXDGY Enclosure: 1591XXDGY
Buy the Hammond Series 1591XXDGY enclosure online today and enjoy a reliable, flame-retardant solution for protecting your printed circuit boards. Crafted from UL94V-0-rated ABS plastic, this enclosure offers excellent resistance against dust and water splashes, with a sturdy tongue-and-groove design for secure assembly. It includes molded-in PCB standoffs, brass inserts for screws, and is easily modifiable for custom applications. Perfect for industrial environments, this enclosure ensures your electronics are protected while providing easy access for maintenance. Order now and safeguard your sensitive components efficiently.
Order your Hammond Series 1591XXDGY enclosure today and secure reliable protection for your electronic projects with durable flame-retardant ABS.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1591XXDGY?
You can click on the BUY or RFQ button to purchase 1591XXDGY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1591XXDGY?
You can download the 1591XXDGY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1591XXDGY?
Hammond Manufacturing
