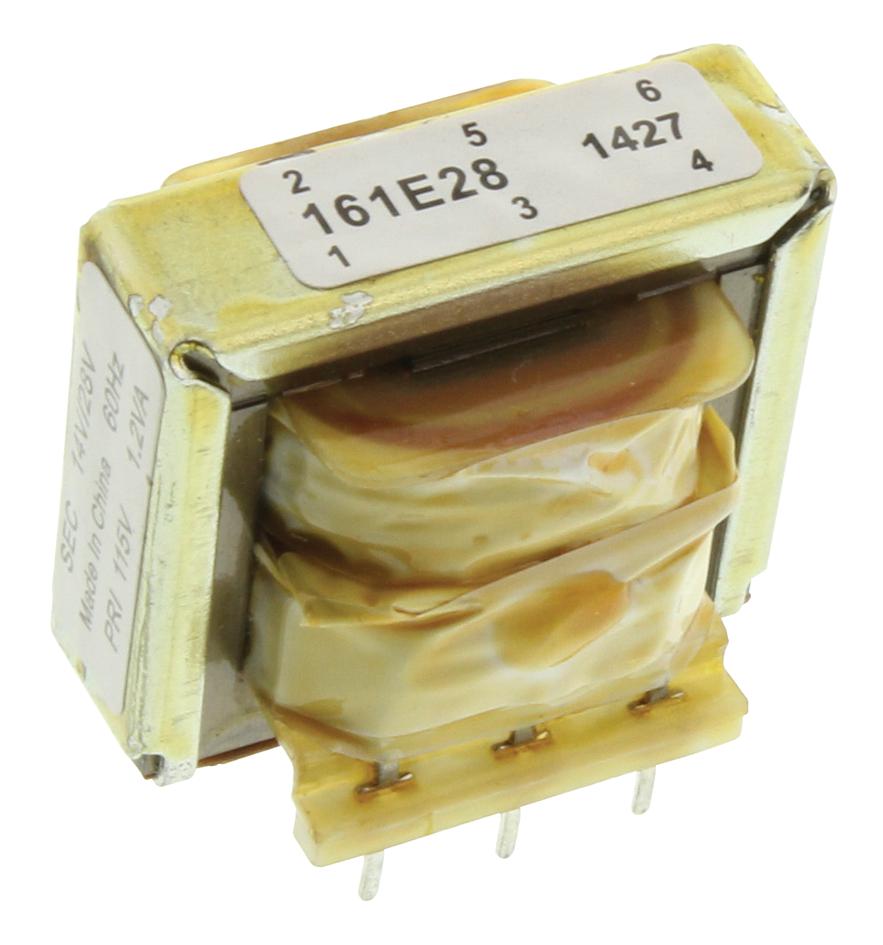

Hammond Manufacturing 161E28 Low Voltage Power Transformer
The 161E28 is a 1.2VA low voltage PCB-mounted isolation transformer designed for power management and industrial applications. It features a 28V center-tapped secondary at 40mA and a parallel secondary of 14V at 80mA (RMS). The transformer has a 115V primary operating at 60Hz, with a vertical-mount split bobbin design and non-concentrically wound dual windings. It offers low primary-to-secondary coupling without the need for an electrostatic shield, high insulation with a hi-pot rating of 2000Vrms, and a Class-B insulation rating of 130°C.
Hammond Manufacturing 161E28 Low Voltage Power Transformer Specifications:
- Power: 1.2 VA
- Primary Voltage: 115V
- Secondary Voltage: 28V center-tapped, 14V parallel
- Secondary Current: 40mA at 28V, 80mA at 14V
- Frequency: 60Hz
- Insulation Rating: Class B (130°C)
- High Insulation: Hi-pot 2000V RMS
- Design: Vertical-mount split bobbin, non-concentrically wound
- Coupling: Low primary to secondary coupling, no electrostatic shield required
- Application: Power management, industrial control, isolation
Buy the Hammond 161E28 – Reliable Low Voltage Power Transformer for Industrial Applications
Order the Hammond 161E28 low voltage power transformer online today and enjoy a high-quality, reliable solution for industrial power management. Designed for PCB mounting, this transformer features a 28V center-tapped secondary and a 14V parallel secondary, supporting 1.2VA power ratings. Its robust insulation, high dielectric strength, and efficient split bobbin design ensure solid performance in various industrial applications. Purchase now to benefit from fast delivery, guaranteed quality, and expert support for your power and control needs.
Buy Hammond 161E28 low voltage PCB mount transformer now and experience unmatched power management and industrial reliability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 161E28?
You can click on the BUY or RFQ button to purchase 161E28 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 161E28?
You can download the 161E28 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 161E28?
Hammond Manufacturing
