Hammond Manufacturing 162E24 Datasheet & Stock

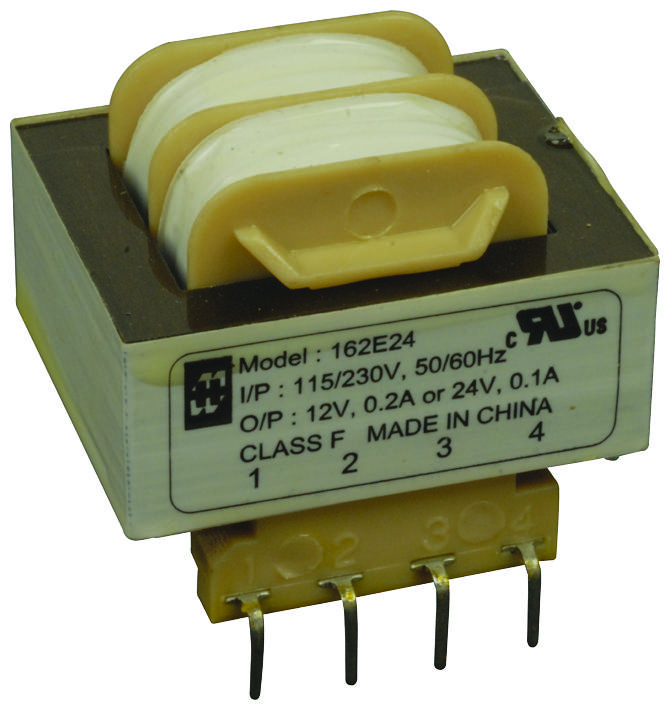

The 162E24 is a 2.4 VA low-voltage PCB-mounted isolation transformer featuring a 24V center-tapped secondary at 0.1A in series and 12V at 0.2A in parallel (RMS). It has a dual primary input for 115/230V operation, and works on 50/60Hz frequency. The transformer utilizes a low-profile split bobbin design with non-concentrically wound dual secondary windings, designed so that all windings must be used. It offers low primary-to-secondary coupling without requiring an electrostatic shield, high insulation with a Hi-pot rating of 2500 Vrms, and meets 130°C Class-B insulation standards. Suitable applications include power management and industrial use.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 162E24?
You can click on the BUY or RFQ button to purchase 162E24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 162E24?
You can download the 162E24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 162E24?
Hammond Manufacturing
