Hammond Manufacturing 162G24 Datasheet & Stock

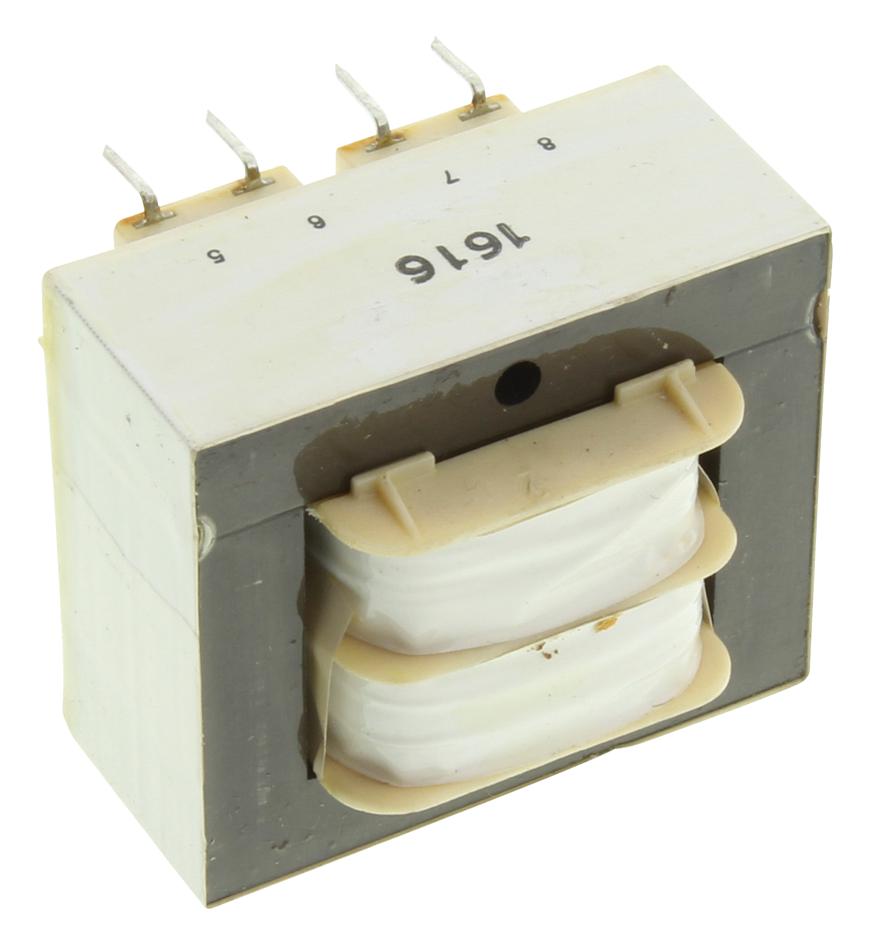

The 162G24 is a 12VA low voltage PCB-mounted isolation transformer featuring a 24V center-tapped secondary at 0.5A in series and a 12V secondary at 1A in parallel, with RMS ratings. It has dual 115/230V primary inputs, operates on 50/60Hz frequency, and utilizes a low-profile split bobbin design with non-concentrically wound dual secondaries. All windings are required for proper operation. The transformer provides low primary-to-secondary coupling, eliminating the need for an electrostatic shield. It offers high insulation with a Hi-pot rating of 2500Vrms and is rated for 130°C Class-B insulation. Suitable for power management and industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 162G24?
You can click on the BUY or RFQ button to purchase 162G24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 162G24?
You can download the 162G24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 162G24?
Hammond Manufacturing
