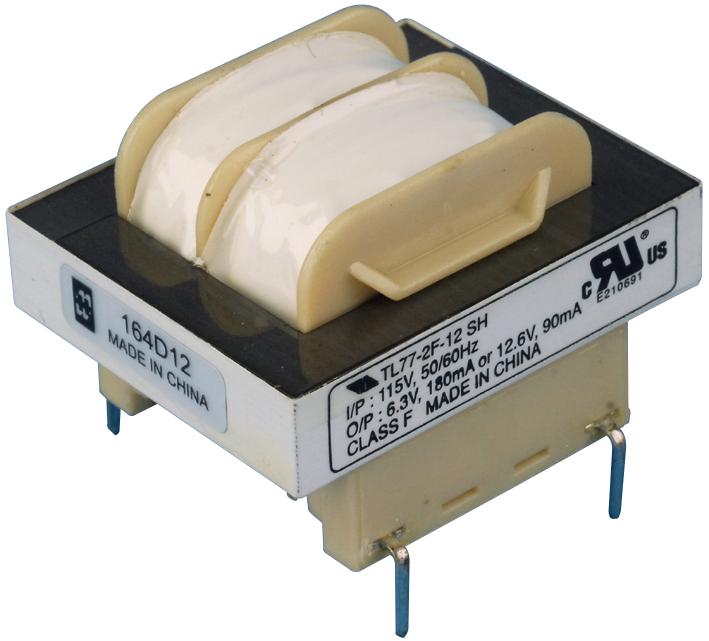

Hammond Manufacturing 164D12 Power Transformer
This component is designed for power management and industrial applications, providing reliable electrical performance for demanding environments. It features multiple output voltages, dual primary options, a low profile split bobbin design, and high insulation levels with UL and CSA recognition. Suitable for PCB mounting, it offers 50/60 Hz operation, excellent thermal capacity, and minimal electromagnetic coupling. Its robust construction ensures durability and efficiency in various electrical systems, making it ideal for industrial automation, control systems, and power supply modules requiring consistent voltage regulation and safe installation.
Hammond Manufacturing 164D12 Power Transformer Specifications:
- Output Voltages: 5V, 6V, 12V, 16V, 20V, 24V, 28V, 36V, 48V, 56V, 120V
- Power Rating: 1.1VA to 36VA models available
- Primary Voltage: 115V or 115/230V dual primary options
- Frequency: 50/60Hz
- Insulation: Class B, HIPOT 2500V RMS
- Design: Low profile split bobbin, dual winding secondary
- Mounting: PCB mount, four-hole design on larger sizes, no hardware on smaller
- Temperature Rating: Up to 130°C
- Dimensions: Length varies from 1.38 to 2.63 inches, height from 0.25 to 1.56 inches
- Certifications: UL Listed, CSA Certified
- Weight: Ranges from 0.17 to 1.1 pounds depending on size
- Mounting Hole: #4 to #6 screw size, with specific dimensions provided
- High insulation with low primary to secondary coupling, no electrostatic shield required
Buy the Buy Hammond Power Transformer Part Number 164D12 Online
Purchase Hammond 164D12 power transformer online today to benefit from reliable electrical performance in industrial environments. This transformer supports multiple voltages, operates on 50/60 Hz, and features high insulation for safety and durability. Its PCB mount design makes installation straightforward, suitable for power management, automation, and control systems. With UL recognition and a robust construction, it guarantees consistent performance, minimizes electromagnetic interference, and ensures long-term operation in demanding industrial settings. Buy now for efficient power solutions.
Buy Hammond 164D12 power transformer now and ensure reliable voltage regulation for demanding industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 164D12?
You can click on the BUY or RFQ button to purchase 164D12 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 164D12?
You can download the 164D12 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 164D12?
Hammond Manufacturing
