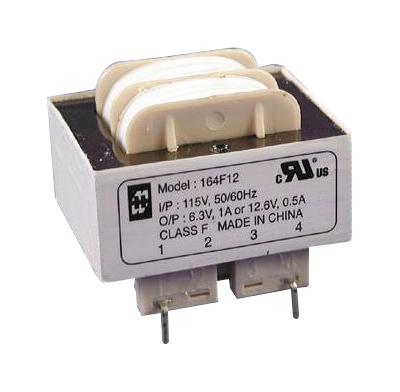

Hammond Manufacturing 164D36 Power Transformer
This component is designed for power management and industrial applications, providing reliable performance in various electrical systems. It features low profile, split bobbin design, dual winding secondaries, and high insulation voltage. Available in multiple output voltages from 5V to 36V, it supports 50/60 Hz operation with options for single or dual primary voltages of 115V or 115/230V. Suitable for PCB mount installations, it offers robust electrical insulation, with a HIPOT of 2,500V RMS, and is UL and CSA recognized for safety and quality.
Hammond Manufacturing 164D36 Power Transformer Specifications:
- Operating Frequency: 50/60 Hz
- Primary Voltages: 115V, 115/230V dual primary options
- Output Voltages: Ranging from 5V to 36V
- Power Ratings: From 1.1 VA to 36 VA models
- Insulation: Class B, HIPOT of 2,500V RMS
- Temperature Rating: 130°C
- Mounting: PCB mount, two or four hole mounting depending on size
- Physical Dimensions: Length varies from 1.38 to 2.63 inches, height up to 1.56 inches, width up to 2.19 inches
- Construction: Low profile split bobbin, dual winding secondaries, non-concentrically wound
- Standards: UL Listed, CSA Certified
Buy the Buy Hammond Power Transformer Part Number 164D36 Online
Purchase the Hammond 164D36 power transformer online today and enjoy fast shipping, trusted quality, and exceptional performance for your power management and industrial projects. Designed for reliable operation, this transformer features multiple voltage options, high insulation ratings, and easy PCB mounting, making it ideal for automation, control systems, and electrical applications. Secure your supply of high-quality transformers now and ensure long-term durability and safety in your electrical systems, with confidence in Hammond's renowned manufacturing standards.
Buy Hammond 164D36 power transformer now and experience unmatched reliability and performance for industrial and power management systems.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 164D36?
You can click on the BUY or RFQ button to purchase 164D36 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 164D36?
You can download the 164D36 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 164D36?
Hammond Manufacturing
