Hammond Manufacturing 175CNA Voltage Step-Down Transformer

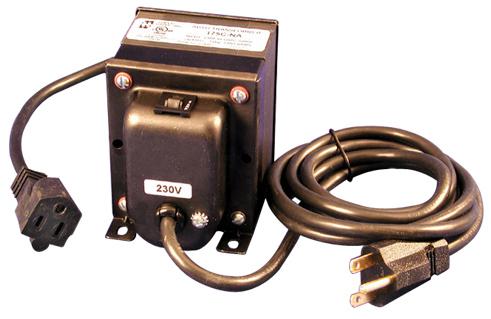

The 175C-NA is a plug-in step-down autotransformer designed for use in settings where equipment is already isolated, and only voltage adjustment is needed. It features a single winding without isolation, suitable for worldwide applications operating at 50 or 60Hz, and steps down from 230V to 115V AC. The input is protected by a circuit breaker and has been tested for hipot breakdown voltage up to 2kVrms. The standard input includes a grounded North American 250V, three-wire plug (NEMA 6-15P), connected via a 5-foot cord. The output is delivered through a 1-foot long pig tail cord. This device is certified by the North American Safety Marks, including C UL and UL listings (File #E211544). It is intended for indoor use primarily in industrial and power management applications.
Hammond Manufacturing 175CNA Voltage Step-Down Transformer Specifications:
- Capacity: 300 VA
- Input Voltage: 230 VAC, 50/60 Hz
- Output Voltage: 115 VAC
- Input Plug: Grounded North American 250V, 3-wire (NEMA 6-15P)
- Output Cord: 1-foot long pig tail with grounded NEMA 5-15R receptacle
- Protection: Circuit breaker protected
- Test Voltage: Hi-pot tested to 2 KV RMS
- Dimensions: Overall length 3.16 inches, width 4.25 inches, height 3.81 inches
- Weight: 6 lbs
- Certification: UL Listed, CSA Certified
- Application: Indoor use only, voltage step-down for equipment compatibility
Buy the Hammond 175CNA – Reliable Voltage Step-Down Transformer for Industrial Applications
Purchase the Hammond 175CNA voltage step-down transformer online today to efficiently convert 230V AC to 115V AC, perfect for industrial, power management, and equipment compatibility needs. This high-quality autotransformer features a 300 VA capacity, circuit breaker protection, and certified safety standards. Its compact design, including a 5-foot grounded input cord and a 1-foot output pig tail, makes installation simple and reliable. Ideal for indoor environments, this transformer assures safe and consistent voltage regulation for various power applications. Order now for trusted performance.
Order your Hammond Series 175CNA voltage step-down transformer today and ensure reliable voltage conversion for your industrial projects.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 175CNA?
You can click on the BUY or RFQ button to purchase 175CNA from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 175CNA?
You can download the 175CNA datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 175CNA?
Hammond Manufacturing
