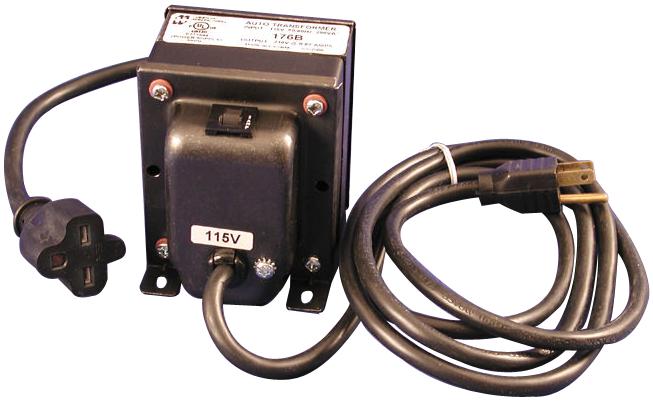

Hammond Manufacturing 176B Step-Up Auto Transformer
The 176B is a plug-in step-up auto transformer designed for equipment that is already isolated and only requires voltage conversion from 115V to 230V. It features a single winding without isolation capacity, suitable for worldwide applications operating at 50 or 60Hz. The unit includes a circuit breaker-protected input connected via a 5-foot cord with a grounded NEMA 5-15P plug, and provides a grounded NEMA 6-15R 250V receptacle output. It is HIPOT tested to 2kVrms and complies with UL and cUL safety standards, making it ideal for industrial and power management settings.
Hammond Manufacturing 176B Step-Up Auto Transformer Specifications:
- Capacity: 200 VA
- Input Voltage: 115VAC
- Output Voltage: 230VAC
- Input Connection: 5-foot cord with NEMA 5-15P plug
- Output Receptacle: NEMA 6-15R, 250V
- Protection: Circuit breaker protection
- Frequency: 50 or 60Hz
- Isolation: Single winding, does not provide isolation
- Testing: HIPOT tested to 2kVrms
- Safety Certifications: UL and cUL listed (File #E211544)
- Dimensions: Length 4.25 inches, Width 3.16 inches, Height 4.25 inches
- Weight: 45 lbs
- Indoor Use Only
Buy the Hammond Series 176 Auto Transformer: 176B
Purchase the Hammond Series 176B step-up auto transformer online today to ensure dependable voltage conversion from 115V to 230V. Ideal for industrial use, this UL-listed unit provides a safe and reliable solution with circuit breaker protection and a grounded output receptacle. Its compact design, worldwide voltage compatibility, and rigorous testing make it suitable for power management among various applications. Shop now and benefit from a robust, easy-to-install transformer designed for indoor environments and professional use, ensuring your equipment operates efficiently and safely.
Order your Hammond Series 176B step-up auto transformer today and enhance your power conversion needs with reliable, UL-listed performance.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 176B?
You can click on the BUY or RFQ button to purchase 176B from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 176B?
You can download the 176B datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 176B?
Hammond Manufacturing
