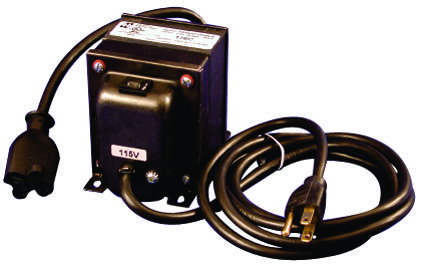

Hammond Manufacturing 176C Voltage Step-Up Transformer
The 176C is a plug-in step-up auto transformer designed for indoor use, supporting worldwide 50/60Hz operation. It features a single winding, does not provide electrical isolation, and is suitable for applications where equipment is already isolated. The input is a grounded three-prong North American plug attached to a five-foot cord, and the output is a 250V receptacle connected via a one-foot pigtail cord. It is circuit breaker protected, high-pot tested at 2kV RMS, and ideal for voltage adjustment in industrial settings without line frequency conversion.
Hammond Manufacturing 176C Voltage Step-Up Transformer Specifications:
- Capacity: 300 VA
- Overall Dimensions: A-3.16 inch, B-5.00 inch, C-3.69 inch, D-4.68 inch, E-3.00 inch, Wt.-6 lbs.
- Input: 115VAC, 3-wire grounded plug with 5 foot cord
- Output: 250V receptacle via 1 foot pigtail cord (NEMA 6-15R)
- Frequency Support: 50/60Hz
- Protection: Circuit breaker protected
- Testing: Hi-pot tested at 2kV RMS
- Operation: Indoor use only, no line frequency conversion
- Construction: Single winding, does not provide electrical isolation
- Application: Voltage step-up for industrial equipment
Buy the Hammond 176C – Reliable Voltage Step-Up for Industrial Applications
Purchase the Hammond 176C voltage step-up transformer online to ensure safe, reliable energy conversion for your industrial equipment. This indoor transformer supports 115VAC to 230VAC voltage increase, ideal for applications requiring no electrical isolation. Its circuit breaker protection and high-pot testing guarantee safety and durability. The plug-in design with a grounded North American plug and a 250V output receptacle makes installation quick and easy. Perfect for industrial settings needing consistent voltage adjustment, it offers dependable performance with worldwide 50/60Hz compatibility. Order now for efficient voltage management.
Get Hammond 176C today—built for precise voltage adjustment and reliable indoor operation in industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 176C?
You can click on the BUY or RFQ button to purchase 176C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 176C?
You can download the 176C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 176C?
Hammond Manufacturing
