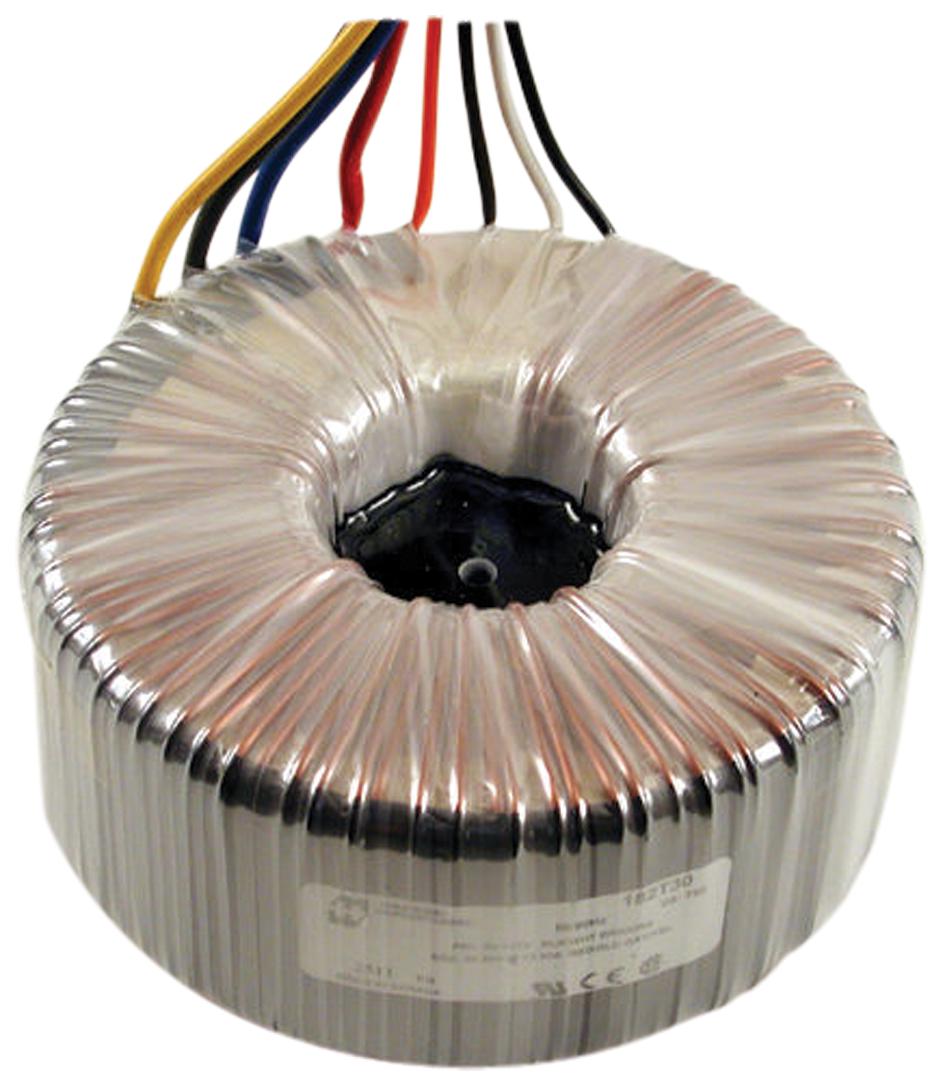

Hammond Manufacturing 182J117 Toroidal Power Transformer
The 182J117 is a high-efficiency toroidal power transformer featuring dual primary and secondary windings. It is designed with a low-profile, lightweight construction and runs cool during operation. The transformer supports dual primary voltages of 117/234VAC at 50/60Hz and features all windings engaged for versatile use. It includes a center single-hole mounting for easy installation, with at least 8 inches of flexible leads. The unit has undergone a hipot test of 4000 Vrms between primary and secondary and is certified by CSA (C22.2 #66, file #209651), UL (UL506, file #E207860), and CE (IEC950). Suitable for industrial applications, it comes with a toroidal transformer, rubber insulating pad, metal centering washer, mounting hardware, and a 3-inch 10-24 bolt.
Hammond Manufacturing 182J117 Toroidal Power Transformer Specifications:
- Type: Toroidal power transformer
- Primary Voltage: 117/234 VAC, dual primary
- Secondary Voltage: Various options (e.g., 15V, 30V, 50V, 80V, 120V, 150V, 225V, 300V, 500V, 625V, 750V, 1000V, 1500V)
- Frequency: 50/60 Hz
- Power Ratings: Ranges from 15 VA to 1500 VA depending on model
- Construction: Low profile, lightweight
- Cooling: Cool running due to high efficiency toroidal design
- Windings: All engaged, dual primary and secondary
- Mounting: Center single-hole, over 225VA includes potted center for extra strength
- Leads: Minimum 8 inches flexible leads
- Testing: Hi-Pot test of 4,000V RMS between primary & secondary
- Certifications: CSA certified (C22.2 #66), UL recognized (UL506), CE certified (IEC950)
- Physical: Rubber insulating pads, metal centering washer, mounting hardware included. Bolt size varies based on VA.
Buy the Hammond Series Toroidal Power Transformer: 182J117
Enhance your electrical setup with the reliable Hammond Toroidal Power Transformer 182J117. This high-efficiency, low-profile transformer features dual primary and secondary windings, supporting versatile voltage options. Certified by CSA, UL, and CE, it ensures safety and quality compliance. Its lightweight construction offers cool operation and easy installation with a centered mounting hole and minimal leads. Perfect for industrial applications requiring consistent power supply, order online now and experience durable, efficient power transformation for your projects with fast, secure shipping and a trusted brand.
Order your Hammond Series Toroidal Power Transformer 182J117 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 182J117?
You can click on the BUY or RFQ button to purchase 182J117 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 182J117?
You can download the 182J117 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 182J117?
Hammond Manufacturing
