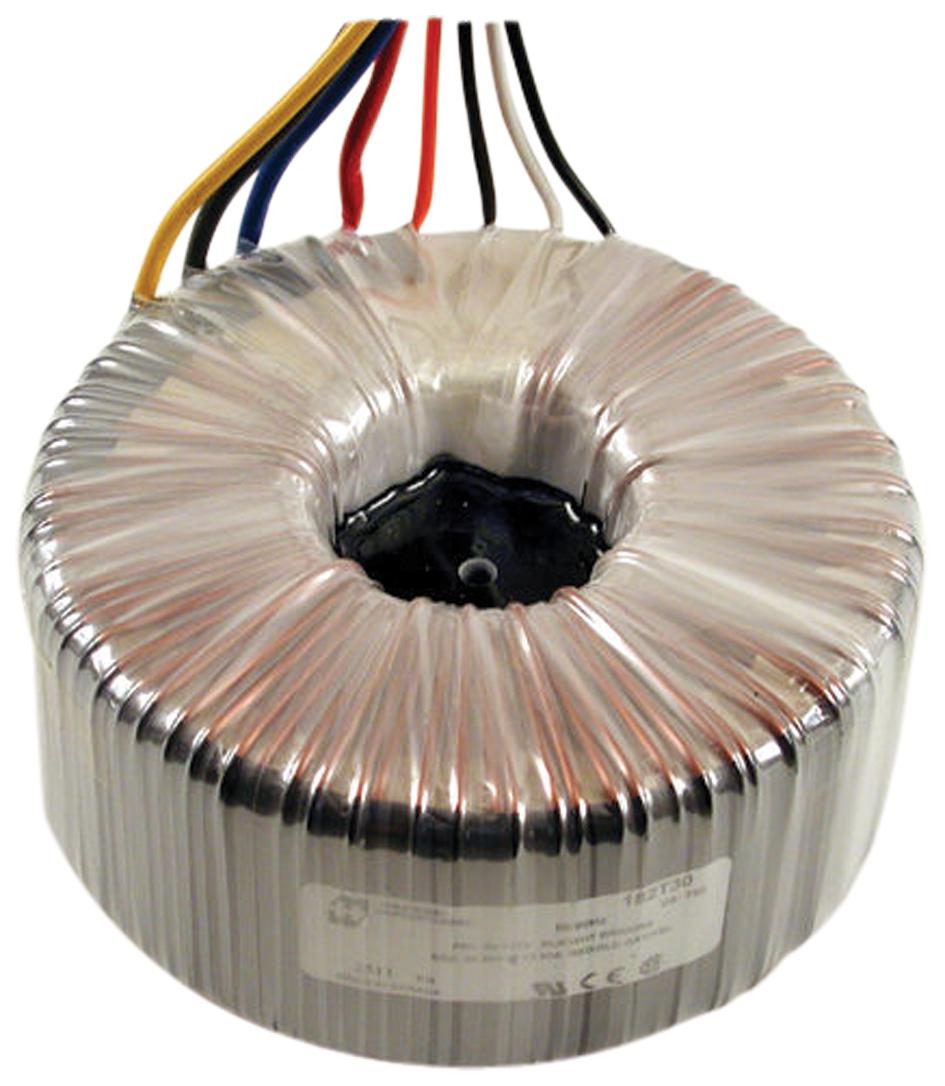

Hammond Manufacturing 182N15 Toroidal Transformer
This component is designed for industrial applications, providing reliable performance in demanding environments.
Hammond Manufacturing 182N15 Toroidal Transformer Specifications:
- Type: Toroidal transformer
- Primary Voltage: Dual 117/234 VAC, 50/60 Hz
- Power Rating: 15 VA
- Secondary Voltage: 12V C.T.
- Construction: Low profile, lightweight, cool-running toroidal design
- Mounting: Center single hole, potted units over 225VA include a reinforced center
- Insulation: Supplied with rubber insulating pads, mounting hardware, and metal centering washer
- Winding Engagement: All windings engaged
- Testing: Hi-Pot test of 4,000V RMS between primary & secondary
- Certifications: CSA certified to C22.2 #66, UL recognized to UL506, CE certified to IEC950
- Dimensions: Diameter approximately 3.63 inches, height 1.73 inches
- Weight: 1.67 lbs
- Mounting hardware: Includes mounting hardware, rubber pads, and a metal washer
- Center bolt size: 10-24
- Additional features: High efficiency toroidal, designed for continuous operation in industrial settings
Buy the Buy Hammond Toroidal Transformer Part Number 182N15 Online
Experience reliable power with the Hammond Toroidal Transformer, part number 182N15. Designed for industrial applications, it offers high efficiency, lightweight construction, and dual primary voltage options. It is CSA, UL, and CE certified for safety and quality. Easy to install with center mounting, rubber insulators, and reinforced center for stability. Perfect for demanding environments requiring continuous operation, this transformer ensures durability and dependable performance for your electrical systems. Order today for fast, secure online purchase.
Get Hammond 182N15 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 182N15?
You can click on the BUY or RFQ button to purchase 182N15 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 182N15?
You can download the 182N15 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 182N15?
Hammond Manufacturing
