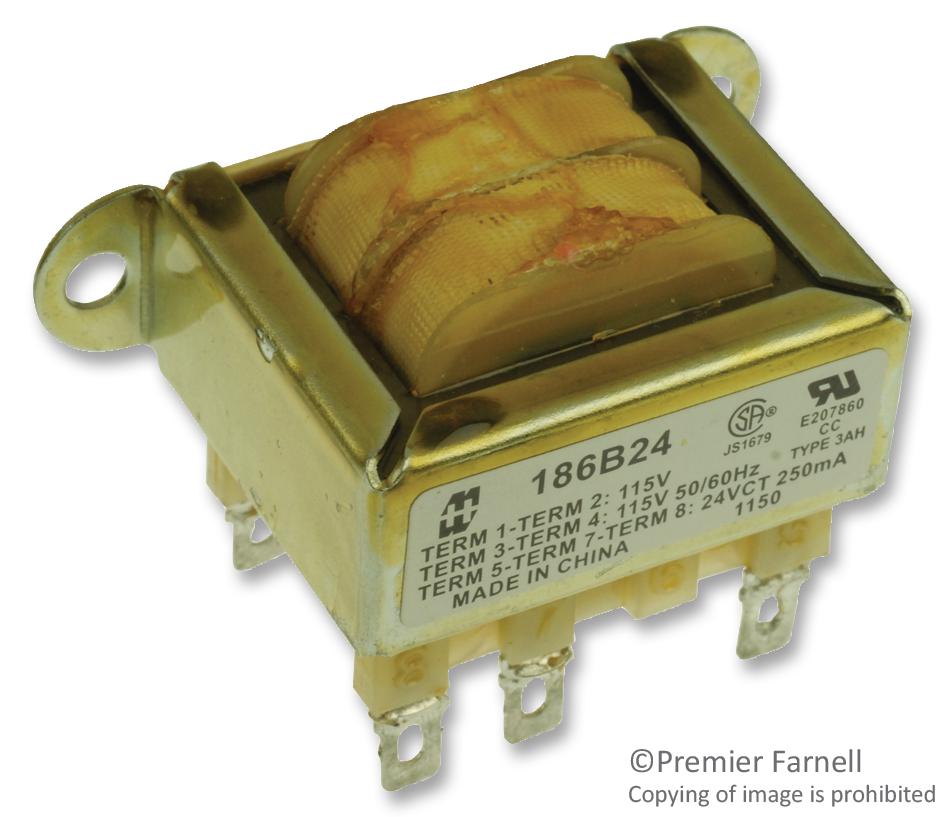

Hammond Manufacturing 186B24 Industrial Transformer
This component is designed for industrial applications, offering reliable performance for demanding environments. Suitable for various industrial equipment and machinery.
Hammond Manufacturing 186B24 Industrial Transformer Specifications:
- Primary Voltage: 115 VAC or 115/230 VAC dual primary options
- Secondary Voltage: 24V CT
- Current Rating: 0.25 Amps
- VA Rating: 6 VA
- Dimensions: Length 2.37 inches, Height 1.25 inches, Depth 1.37 inches
- Mounting Centers: 1.75 inches
- Terminal Type: 3/16 (.187) quick connect or solder lug terminals
- Insulation Material: Class B, 130°C capable
- Operating Frequency: 50/60 Hz
- Temperature Rise: Designed to Class A temperature rise
- Certification: UL recognized, CSA certified
- Construction: Split bobbin eliminates the need for an electrostatic shield
- Hi-pot test: 2 KV RMS
Buy the Buy Hammond Industrial Transformer Part Number 186B24 Online
Purchase the Hammond Series186B24 industrial transformer online today and enjoy fast delivery and secure checkout. This reliable transformer features dual primary 115/230 V, 24V secondary, and a 6 VA rating, ideal for demanding industrial environments. Compact chassis mount design, UL recognized, and CSA certified ensure safety and durability. Easy to install with 3/16 (.187) quick connect or solder lug terminals, split bobbin construction, and robust insulation. Perfect for powering various industrial equipment efficiently and safely with excellent performance reliability.
Order your Hammond Series186B24 industrial transformer today and ensure reliable power for your demanding machinery with this durable, UL recognized component.
