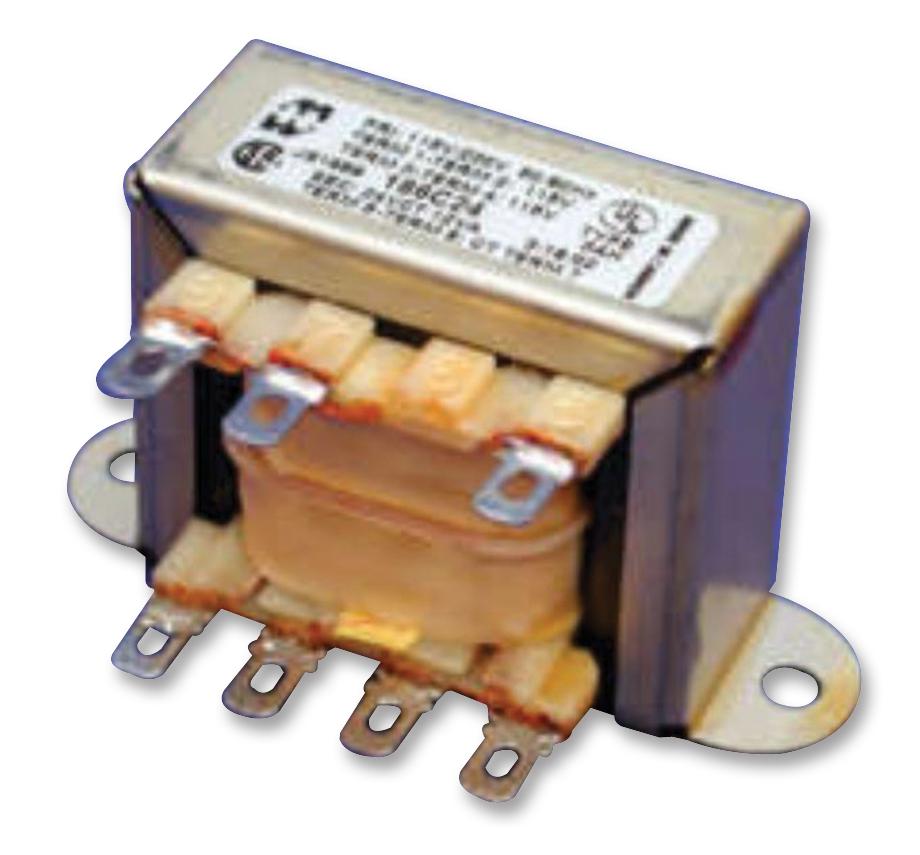

Hammond Manufacturing 186C24 Industrial Transformer
This component is suitable for industrial applications, providing reliable performance in demanding environments. It features a split bobbin construction that eliminates the need for an electrostatic shield, and operates on 50/60 Hz with a primary voltage of 115/230 V. The transformer comes with multiple secondary voltage options, including 24V, 28V, 36V, 48V, and 120V, with current ratings ranging from 0.05A to several amps. Its open style, chassis mount design ensures easy installation, UL recognition, CSA certification, and a temperature rise rated to Class A standards, making it ideal for robust industrial use.
Hammond Manufacturing 186C24 Industrial Transformer Specifications:
- Operation Frequency: 50/60 Hz
- Primary Voltage: 115/230 VAC
- Secondary Voltages: 24V, 28V, 36V, 48V, 120V
- Current Ratings: 0.05A to several amps depending on model
- Insulation Material: Min of Class B or 130°C
- Construction: Split bobbin with no electrostatic shield
- Mounting: Chassis mount with 3/16 (.187) quick connect or solder lug terminals
- Dimensions: Length varies from approximately 2.06 inches to 4.03 inches, heights from around 1.06 inches to 2.25 inches, with mounting hole centers at 1.75 inches or 2.00 inches
- Certification: UL recognized, CSA certified
- Temperature Rating: Designed for Class A temperature rise
- Construction Material: Economical open style channel frame
Buy the Hammond 186C24 – Reliable Transformer for Industrial Applications
Purchase Hammond 186C24 online today to ensure your industrial projects operate smoothly with a dependable transformer. This product offers multiple secondary voltage options and high current ratings, making it ideal for various industrial equipment. Its chassis mount design simplifies installation, and it is UL recognized and CSA certified for safety and quality assurance. Whether you need 24V, 28V, or higher secondary voltages, this transformer delivers reliable performance. Available at competitive prices, order now for fast shipping and hassle-free procurement.
Buy Hammond 186C24 transform now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 186C24?
You can click on the BUY or RFQ button to purchase 186C24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 186C24?
You can download the 186C24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 186C24?
Hammond Manufacturing
