Hammond Manufacturing 186E12 Power Transformer
This component is used for power management and industrial applications, providing reliable performance in various electronic systems.
Hammond Manufacturing 186E12 Power Transformer Specifications:
- Type: Low Voltage Transformer
- Primary Voltages: 115VAC or dual 115/230VAC options
- Secondary Voltages: 10V, 12V, 16V, 20V, 24V, 28V, 36V, 48V, 56V, 120V
- Current Ratings: Ranging from 0.05 to 10 Amps
- VA Ratings: 6 VA to 1008 VA
- Construction: Split bobbin design, open style channel frame chassis mount
- Terminals: Solder or quick connect, 3/16 inch diameter
- Temperature Rating: Class B or 130°C insulation material, designed for Class A temperature rise
- Certifications: UL recognized, CSA certified
- Operating Frequency: 50/60 Hz
- Hi-pot Test: 2 KV RMS
- Dimensions: Length 2.81 to 4.03 inches, height approximately 1.37 to 2.25 inches, mounting centers 1.75 to 3.50 inches

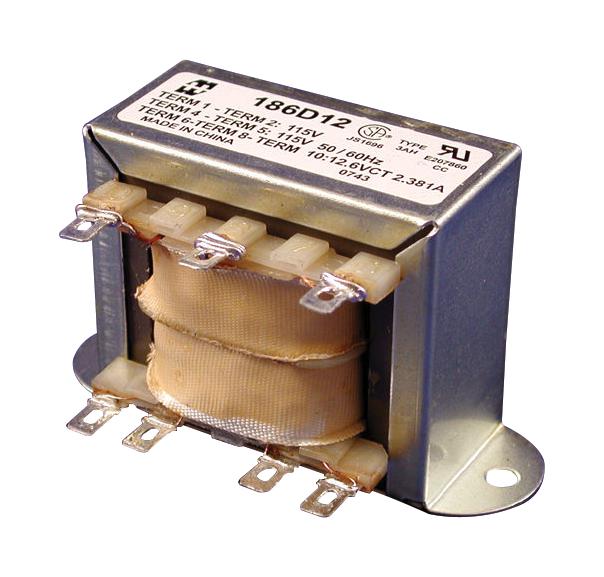

Buy the Buy Hammond Power Transformer Part Number 186E12 Online
Order the Hammond 186E12 power transformer online today for reliable voltage conversion in industrial and electronic applications. This high-quality component offers versatile primary options of 115VAC or 115/230VAC, and secondary voltages from 10V to 120V, supporting currents up to 10 Amps and VA ratings up to 1008 VA. Designed with split bobbin construction, open style chassis mount, and certified UL recognized and CSA approved for safety. Ensure your power management needs are met with this durable, high-performance transformer, available for quick online purchase.
Buy Hammond 186E12 transformer now and experience dependable power delivery for industrial systems and electronic equipment.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 186E12?
You can click on the BUY or RFQ button to purchase 186E12 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 186E12?
You can download the 186E12 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 186E12?
Hammond Manufacturing
