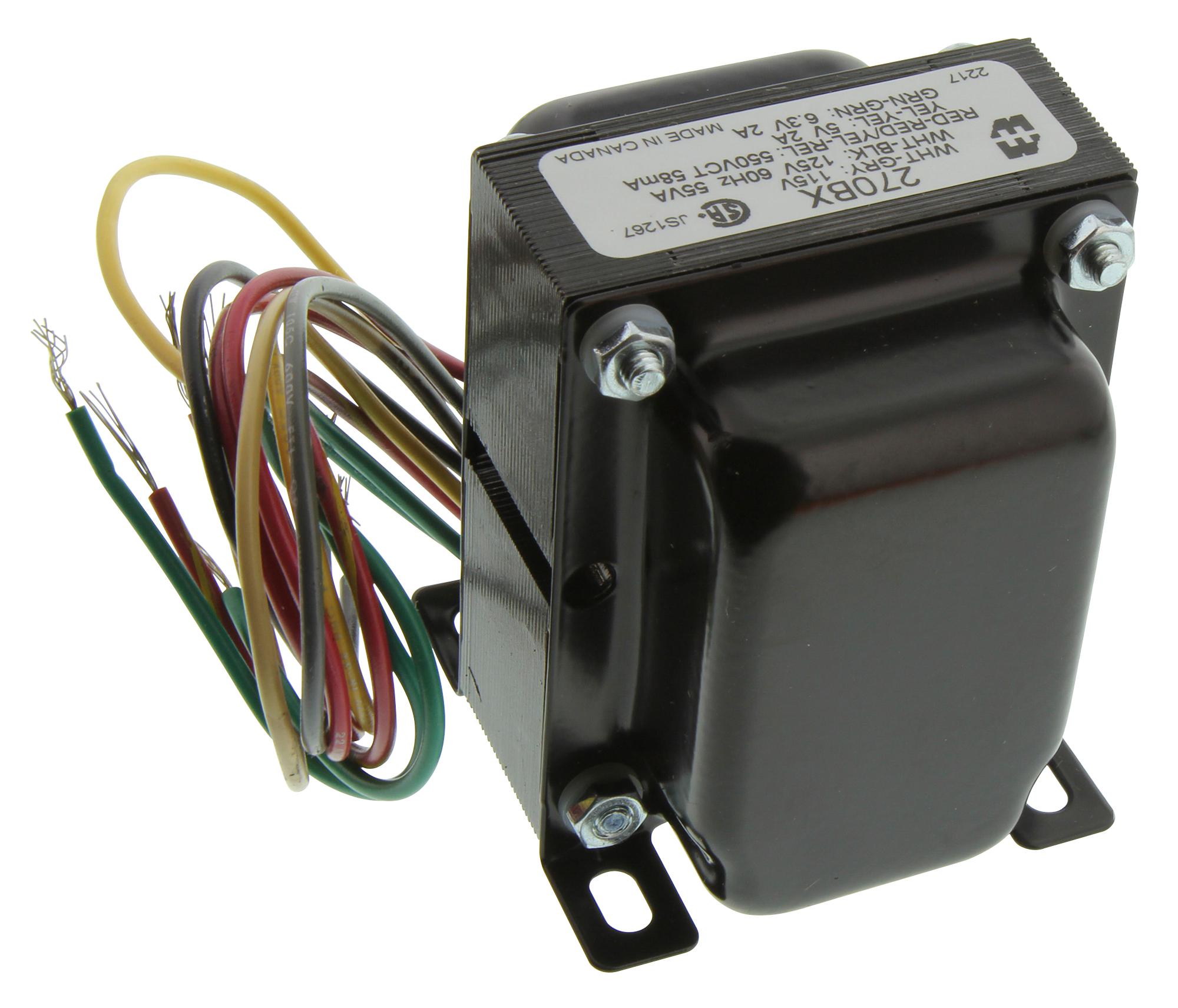

Hammond Manufacturing 270BX high voltage transformer
The Hammond 200 Series high voltage and filament transformer, part number 270BX, is designed for 115/125V primary input, providing reliable high voltage output and filament voltage for electronic and audio equipment. This enclosed, chassis-mount transformer features a 600V C.T. secondary, 5V and 6.3V filament outputs, and minimal lead lengths for easy installation. Suitable for applications requiring full wave bridge or center-tapped operation, it is CSA certified with Class A insulation for temperatures up to 105°C, ensuring durability and safety in demanding environments.
Hammond Manufacturing 270BX high voltage transformer Specifications:
- Primary Voltage: 115/125 VAC
- Secondary Voltage: 600V C.T.
- Filament Voltages: 5V @2A, 6.3V @2A
- Power Rating: 53 VA
- Frequency: 60 Hz
- Insulation Class: A (105°C)
- Certification: CSA Certified
- Dimensions: Length 2.5 inches, Width 3.25 inches, Height 3.06 inches
- Mounting: Enclosed, chassis-mount
- Lead Lengths: Minimum 6 inches
- Construction: Full wave bridge or center-tapped operation
- Design: Conservative, reliable for high voltage and filament applications
Buy the Hammond Series 200 High Voltage & Filament: 270BX
Experience the quality and reliability of Hammond's 270BX high voltage transformer. Designed with durable materials and CSA certification, it offers stable 600V output and 5V/6.3V filament voltages. Ideal for audio equipment, test instruments, and electronic projects, this enclosed chassis-mount transformer ensures safety with Class A insulation. Easy to install with minimal lead lengths, it provides excellent performance under demanding conditions. Purchase online today for dependable high voltage solutions and long-term operational safety.
Get Hammond 270BX today—built for high voltage precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 270BX?
You can click on the BUY or RFQ button to purchase 270BX from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 270BX?
You can download the 270BX datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 270BX?
Hammond Manufacturing
