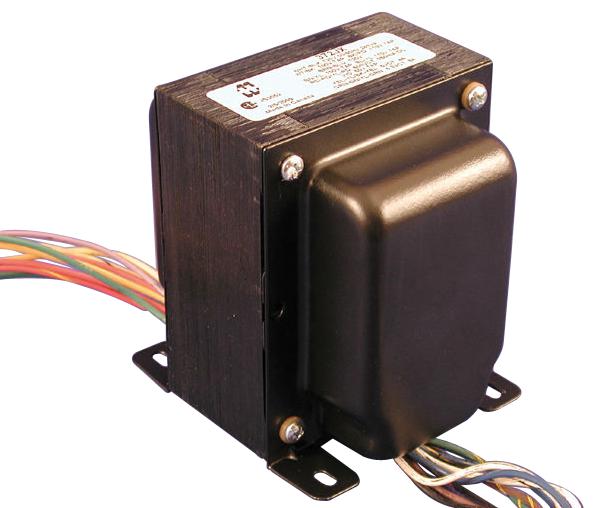

Hammond Manufacturing 373HX Power Transformer
This power transformer is designed for robust power management and industrial applications, providing reliable voltage conversion and electrical isolation in demanding settings. It features primary and secondary windings rated for a range of voltages, including 120V, 110V, and 100V secondary voltages under load conditions, with a maximum voltage of 360V. The transformer is tested for safety with a 2500V dielectric withstand, and offers low DCR readings for efficient energy transfer. It is suitable for various industrial equipment requiring stable power supply performance.
Hammond Manufacturing 373HX Power Transformer Specifications:
- Primary Voltage: 120V, 110V, 100V
- Secondary Voltage: 360V, 120V, 110V, 100V under load
- Voltage Rating: 350V
- DCR @20°C, WHT-BLK: 1.167Ω
- DCR @20°C, BRN-BLU: 1.253Ω
- DCR @20°C, RED-RED: 33.57Ω
- Insulation Resistance: 2500V, 1 sec dielectric withstand
- Leads Length: Minimum 8 inches
- Dimensions: A 4.375 inches, B 5.596 inches, C 5.300 inches, D 3.500 inches, E 4.000 inches, G 0.281 x 0.625 inches
- Test Conditions: @120V, 60Hz, with various voltage load measurements
- Acceptable Voltage Tolerances: 42%
- Frequency: 60Hz
- Application: Power management, industrial equipment
Buy the Buy Hammond Power Transformer Part Number 373HX Online
Purchase the Hammond power transformer 373HX today online to guarantee superior performance in power management and industrial settings. Engineered for reliability, it provides stable voltage output with primary ratings of 350V and secondary voltages up to 360V under load. With low DCR and high dielectric withstand voltage of 2500V, it ensures safety and efficiency. This robust transformer features minimum 8-inch leads for easy installation and is suitable for demanding environments where performance and durability are critical.
Buy Hammond 373HX transformer now and ensure reliable power conversion for industrial applications with precise voltage regulation.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 373HX?
You can click on the BUY or RFQ button to purchase 373HX from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 373HX?
You can download the 373HX datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 373HX?
Hammond Manufacturing
