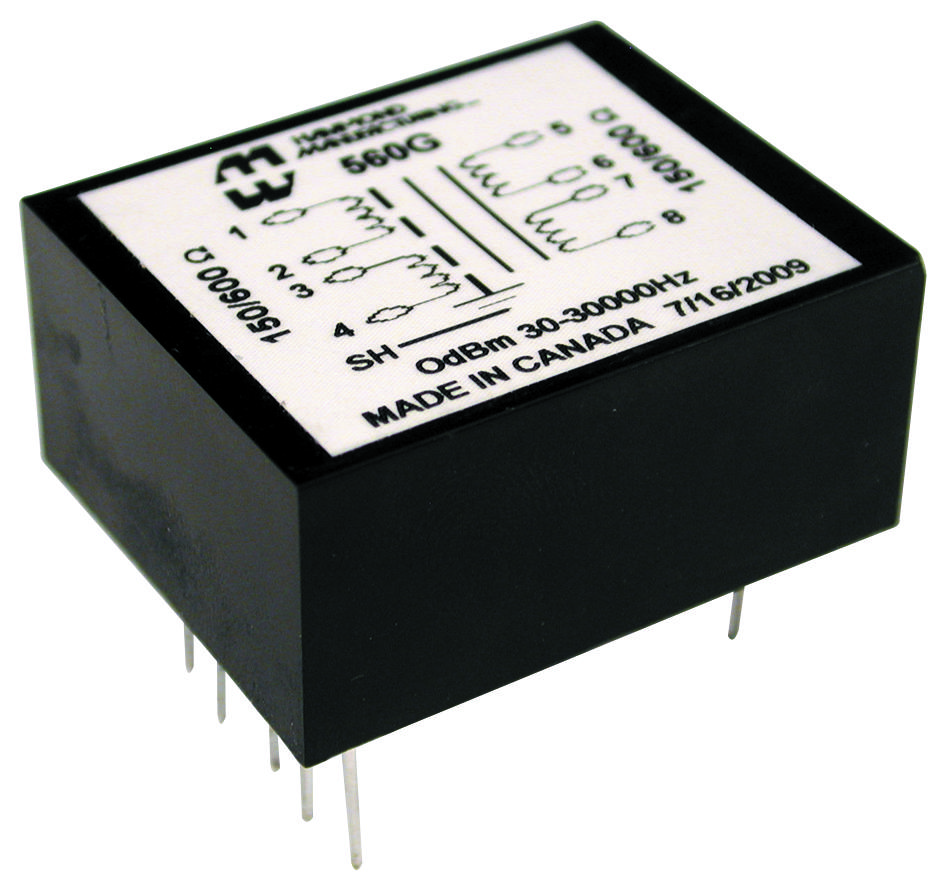

Hammond Manufacturing 560Q Audio Transformer
The 560Q audio transformer is designed for matching or bridging in audio systems, offering a reliable and versatile solution for sound-related electronics projects. Featuring a rugged black epoxy potted case with 9 pin connections, it provides excellent frequency response from 10 Hz to 40 kHz, ensuring high-fidelity sound performance. The transformer includes electrostatic shielding and balanced split windings for circuit versatility. Its compact size, measuring 1.64 inches by 1.33 inches by 0.85 inches, makes it suitable for various audio equipment, offering durable construction for professional or hobbyist applications.
Hammond Manufacturing 560Q Audio Transformer Specifications:
- Dimensions: 1.64 inches (41.7 mm) x 1.33 inches (33.8 mm) x 0.85 inches (21.6 mm)
- Case Material: Black epoxy potted
- Connections: 9 pin terminals (.025 inch square, 0.5 inch long)
- Frequency Response: 10 Hz to 40 kHz (±1 dB), 30 Hz to 15 kHz for 560Q, typical ±0.5 dB
- Impedance: Primary 10kΩ/40kΩ, Secondary 10kΩ/40kΩ for 560Q
- Insertion Loss: Maximum 1 dB
- Shielding: Electrostatic shield connected to core and pin ‘SH’
- Construction: Electrostatic shield, balanced split windings, reversibility for impedance matching
- Weight: 4 oz (0.1 kg)
