Hammond Manufacturing 737A Datasheet & Stock

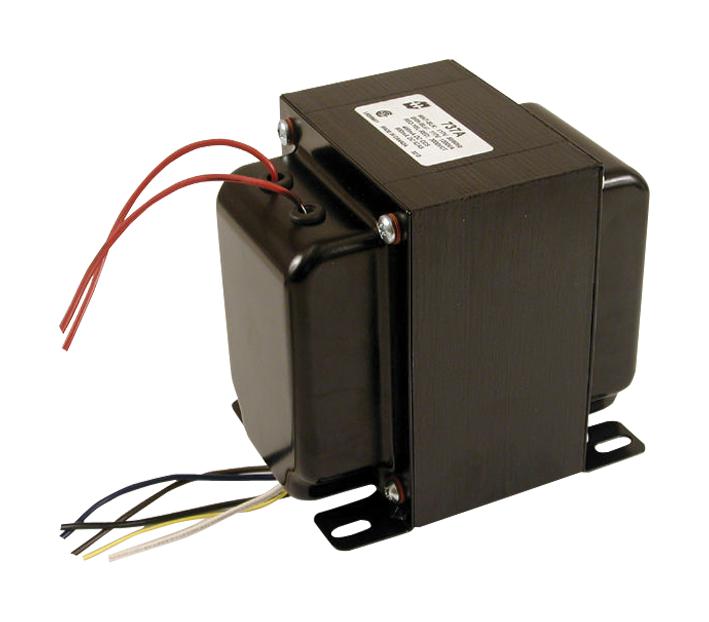

The 737A is a 1200VA high-voltage isolation transformer with a center-tapped secondary rated at 3000V AC and either 400mA (CCS) or 600mA (ICAS). It features a primary voltage of 117/234VAC at 50/60Hz. For secondary voltages of 2000VAC and above, the leads are routed through rubber bushings. The unit can be configured for full wave bridge or full wave center-tapped operation. It is encased in an enclosed, four-hole chassis mount with minimum lead lengths of six inches. The transformer has a Class-A insulation rating at 105°C and undergoes a hi-pot test at twice the secondary voltage. Suitable applications include power management and industrial use.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 737A?
You can click on the BUY or RFQ button to purchase 737A from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 737A?
You can download the 737A datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 737A?
Hammond Manufacturing
