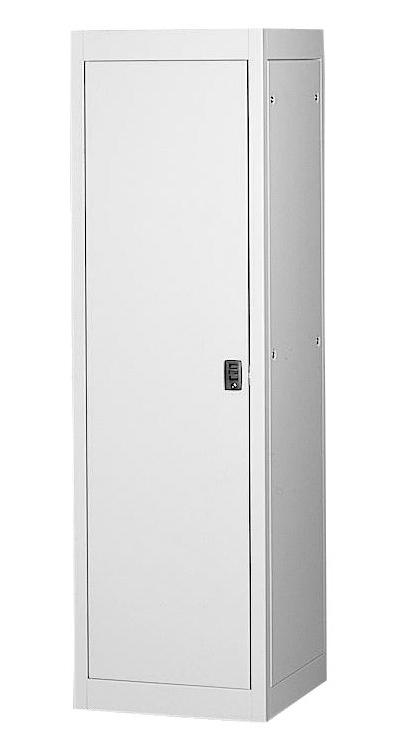

Hammond Manufacturing C2RR196323LG1 Equipment Storage Rack
The C2RR series is a robust, adjustable equipment storage rack cabinet designed for industrial and data center environments. Constructed with 14-gauge steel for the body, 16-gauge steel for doors and side panels, and 10-gauge steel for tapped mounting rails, these cabinets support a 1,500 lbs load capacity, tested to nearly double the rated weight. Features include removable side panels, leveling feet, and compatibility with accessories like cable management and ganging kits. The series includes models with window or louvered doors, vented or solid tops, making it versatile for networking, electrical, and industrial equipment storage, with durable textured powder paint finish and RoHS compliance.
Hammond Manufacturing C2RR196323LG1 Equipment Storage Rack Specifications:
- Constructed with 14-gauge steel (body), 16-gauge steel (doors and side panels), 10-gauge steel (tapped mounting rails), 12-gauge steel (square hole mounting rails).
- Overall Dimensions: Height 71.16 inches, Width 23.00 inches, Depth 23.63 inches.
- Usable Mounting Dimensions: Height 63.06 inches, Width 19.00 inches, Depth 21.63 inches.
- Load Capacity: Tested to nearly double the 1500 lbs (680 kg) rating.
- Finish: Rugged textured powder paint, RoHS compliant.
- Includes: Welded cabinet frame, removable side panels, leveling feet, keys, mounting rails, doors, top panel, and various accessories.
- Available with features such as window or louvered doors, vented or solid top panels with cable access holes.
Buy the Buy Hammond Equipment Storage Rack Cabinet Part Number C2RR196323LG1 Online
Purchase the Hammond Equipment Storage Rack Cabinet C2RR196323LG1 online today. Built with rugged 14-gauge steel and supported by 16-gauge side panels, this heavy-duty rack offers a 1500 lbs load capacity, making it ideal for industrial, electrical, and networking environments. It features adjustable tapped rails, removable side panels, leveling feet, lockable doors, and a textured powder coat finish. Compatible with accessories like cable management and ganging kits, ensuring flexible setup and long-lasting durability for your equipment storage needs.
Get Hammond C2RR196323LG1 today—designed for durable equipment storage with adjustable rails and a 1,500 lb load capacity for industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing C2RR196323LG1?
You can click on the BUY or RFQ button to purchase C2RR196323LG1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part C2RR196323LG1?
You can download the C2RR196323LG1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of C2RR196323LG1?
Hammond Manufacturing
