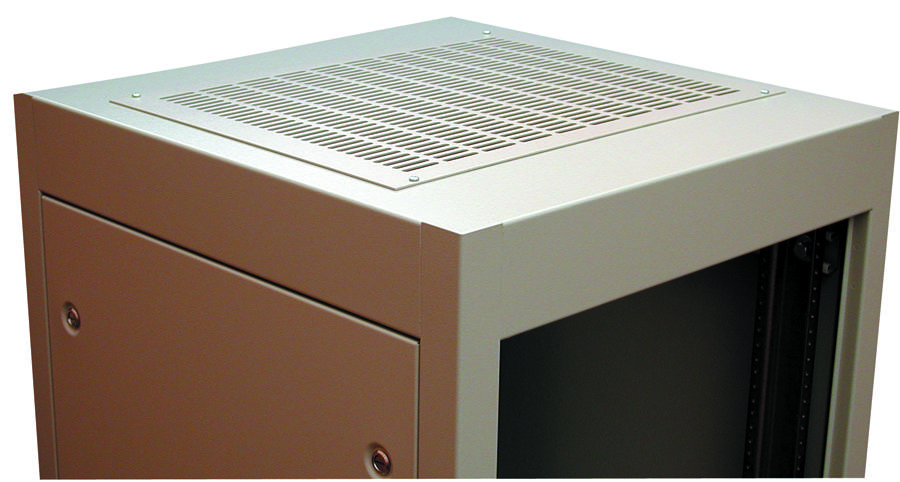

Hammond Manufacturing C2T1923VBK1 Server Rack
The Modular Server Rack Cabinet C4 Series is a sturdy, UL 2416-rated enclosure designed for reliable server and network equipment housing. Constructed from 14-gauge steel for the body, 16-gauge doors and side panels, and 10- and 12-gauge steel for mounting rails, it supports up to 3,000 lbs static load capacity. Features include seismic resistance, zinc-plated grounding rails, optional top panels, and various door and side panel configurations. This rack is RoHS compliant, easy to customize with accessories, and suitable for high-density data centers requiring durable, flexible, and seismic-resistant server cabinets.
Hammond Manufacturing C2T1923VBK1 Server Rack Specifications:
- Constructed in 14-gauge steel body, 16-gauge steel doors and panels, 10-gauge steel tapped rails, 12-gauge steel square hole rails
- Supports up to 3,000 lbs static load, compliant with UL 2416, and seismic Zone-4 standards with optional bolt-down kit
- Finished in textured black powder paint, RoHS compliant, with zinc-plated grounding rails for equipment grounding
- Includes four leveling feet, optional casters, and cable entry support, with maximum height of 83.58 inches and widths of 24 or 30 inches
- Features include pre-installed fans up to 550 CFM, thermal vented panels, multiple door styles, and extensive accessory options
- Multiple models with heights from 48.58 to 83.58 inches, depths from 31.50 to 42 inches, and rack units from 24U to 44U
- Supported by detailed accessories such as cable managers, shelves, locks, and ganging kits for versatile application
Buy the Hammond Series C4 Server Rack: 48U 24-inch Depth Part No C2T1923VBK1
Enhance your data center with the Hammond Series C4 Server Rack, supporting up to 3,000 lbs. It features seismic-resistant design, versatile panel options, and extensive cable management accessories. Constructed from durable steel and finished in textured black powder paint, this rack offers easy installation, grounding, and customization. With models supporting heights from 48.58 to 83.58 inches and widths of 24 or 30 inches, it provides flexible solutions for high-density equipment, ensuring long-term performance and safety for critical network infrastructure. Order online today for reliable data housing.
Buy Hammond Series C4 server rack with customizable panels and high load capacity now and experience unmatched reliability and performance in your data center.
Frequently Asked Questions
Where can I buy Hammond Manufacturing C2T1923VBK1?
You can click on the BUY or RFQ button to purchase C2T1923VBK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part C2T1923VBK1?
You can download the C2T1923VBK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of C2T1923VBK1?
Hammond Manufacturing
