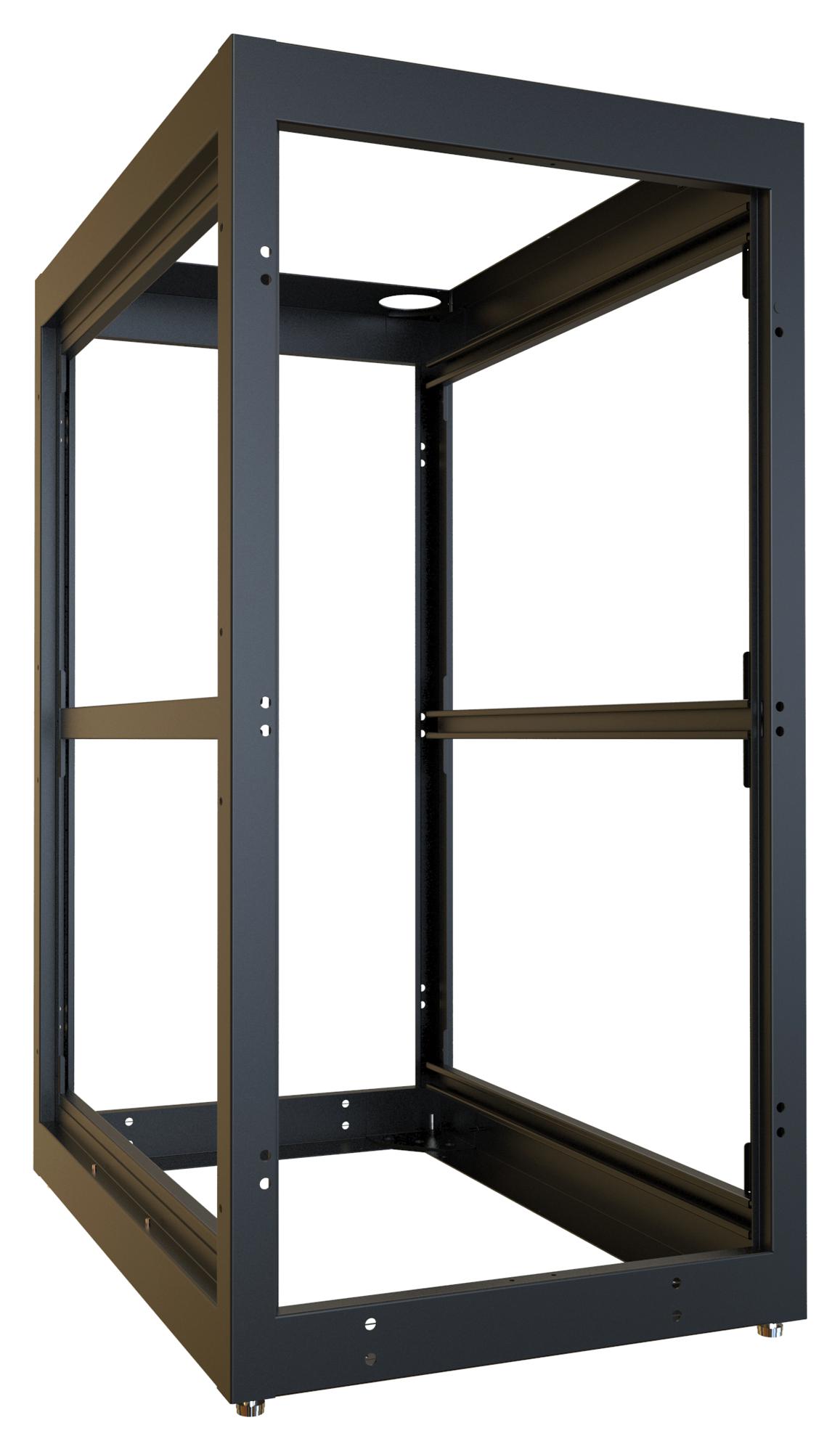

Hammond Manufacturing C4F244231BK1 Server Rack Cabinet
The Hammond C4 Series Modular Server Rack Cabinet offers flexible configurations with options for 24U, 42U, and 44U heights, and frame depths up to 42 inches. Constructed from durable 14-gauge steel with reinforced corners, it supports up to 3,000 pounds UL 2416 rated load capacity. Features include textured black powder coating, adjustable leveling feet, and multiple door and side panel options for thermal management and security. The cabinet is TAA compliant, RoHS certified, and manufactured in North America, making it ideal for data centers and IT environments requiring reliable, scalable server housing.
Hammond Manufacturing C4F244231BK1 Server Rack Cabinet Specifications:
- Material: 14-gauge steel frame, 16-gauge steel doors and panels
- Load Capacity: UL 2416 rated 3,000 lbs (1,361 kg)
- Frame Dimensions: Heights available are 48.58 inches for 24U, 80.08 inches for 42U, 83.58 inches for 44U; widths are 24 and 30 inches; depths up to 42 inches
- Rails: 12-gauge or 10-gauge steel with rack unit indicators, zinc-plated for grounding
- Finish: Textured black powder paint
- Accessories: Locking side panels, hinged doors, cable management options, casters, leveling feet, and various mounting hardware
- Standards: UL Listed (UL 2416), TAA compliant, RoHS, PCI DSS compliant, manufactured in North America
- Weight Capacity and Testing: Supports 3,000 lbs static load, tested to 12,000 lbs
Buy the Hammond Series C4 Rack: Modular Server Cabinet C4F244231BK1
Discover the versatile and reliable Hammond C4 Series Server Rack Cabinet, engineered for maximum scalability and security. Offered in 24U, 42U, and 44U configurations with depths up to 42 inches, it features robust 14-gauge steel construction, reinforced corners, and a textured black powder finish. Ideal for data centers and IT setups, this UL 2416 rated cabinet supports up to 3,000 pounds, ensuring stability and durability. Multiple accessories, including doors, panels, and cable management options, make it easy to customize your setup for optimal performance.
Order your Hammond Series C4 Server Rack Cabinet today and enhance your data center's scalability and security with top-quality modular solutions.
