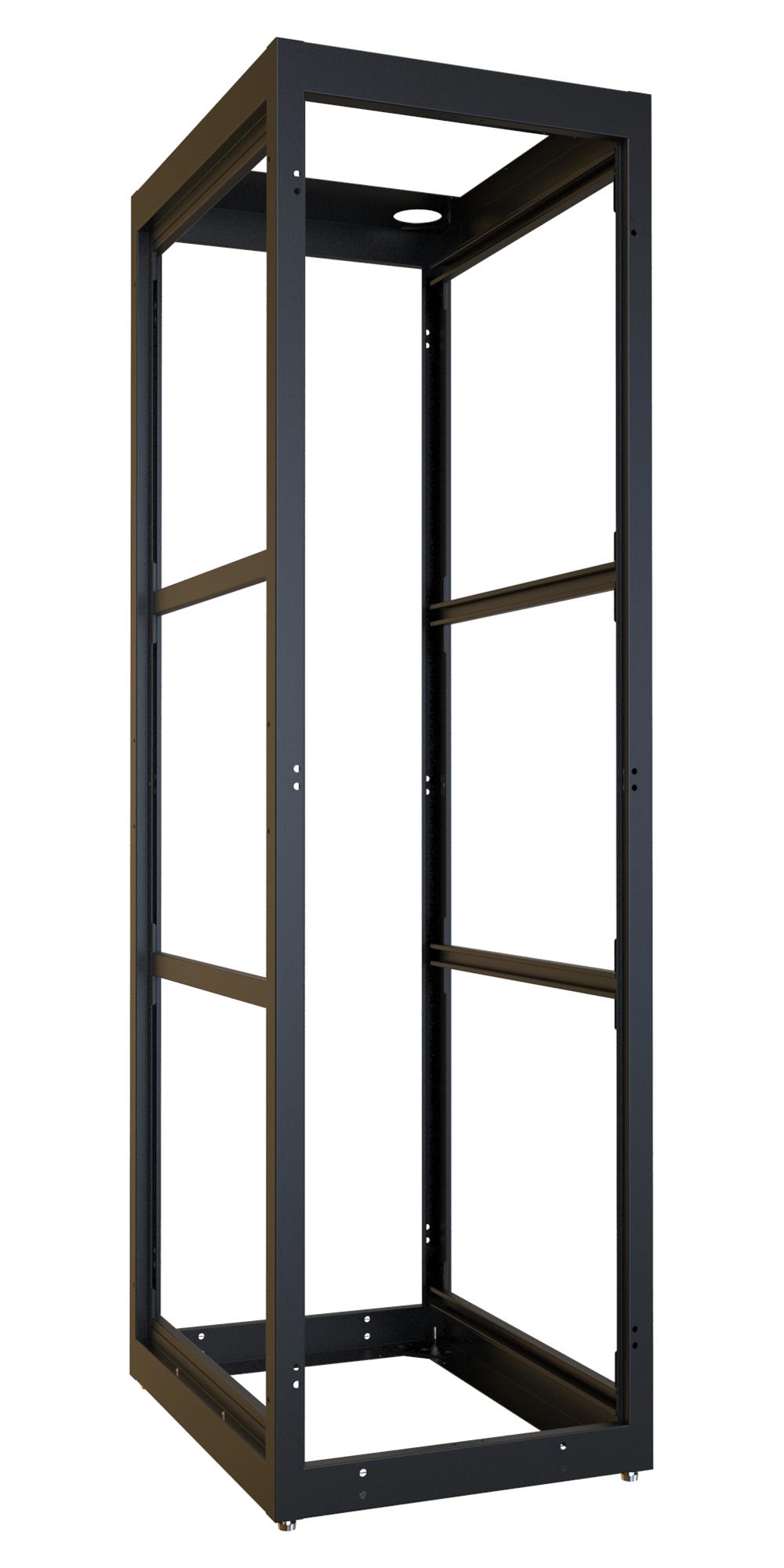

Hammond Manufacturing C4F247731BK1 Modular Server Cabinet
The modular C4 series server rack cabinet offers versatile configuration options with 24U, 42U, and 44U mounting heights, constructed from high-quality steel for durability. It supports up to 3,000 lbs weight capacity, features adjustable depth, vented or solid doors, and includes accessories like cable managers, side panels, and top/bottom panels. Finished in textured black powder paint and meeting PCI DSS and RoHS standards, this North American-made cabinet is designed for flexible, scalable data center and networking installations, supporting advanced thermal management and easy access for maintenance.
Hammond Manufacturing C4F247731BK1 Modular Server Cabinet Specifications:
- Material: 14-gauge steel frame, 16-gauge steel doors and side panels
- Weight Capacity: UL 2416 rated at 3,000 lbs (1,361 kg), static load tested to 12,000 lbs (5,443 kg)
- Frame Widths: 24 inches and 30 inches
- Frame Depths: 31.5 inches, 36 inches, 42 inches
- Mounting Heights: 24U, 42U, 44U with adjustable rails
- Mounting Rails: 12-gauge steel (square hole) or 10-gauge steel (tapped 10-32)
- Finish: Textured black powder coat
- Environmental Standards: Meets PCI DSS, RoHS, UL Listed 2416
- Grounding: Grounding studs on frame and panels
- Additional Features: Includes leveling feet, optional casters, vented or solid doors, interchangeable top/bottom panels
- Accessories: Cable managers, side panels, top/bottom panels, PDU brackets, locks, shelves, and casters
Buy the Buy Hammond Modular Server Rack Cabinet Part Number C4F247731BK1 Online
Purchase Hammond Mfg. Modular Server Cabinet now for reliable, scalable data center solutions. Built with durable steel, adjustable features, vented and solid doors, and an extensive range of accessories to support optimal thermal management and cable organization. Easy to install and customize, this cabinet supports up to 3,000 lbs weight capacity, ensuring long-lasting performance for IT and networking equipment. Securely order online and enhance your infrastructure with top-tier quality and flexibility.
Get Hammond Mfg. C4F247731BK1 today—designed for flexible data center deployment with high load capacity and extensive accessory options.
Frequently Asked Questions
Where can I buy Hammond Manufacturing C4F247731BK1?
You can click on the BUY or RFQ button to purchase C4F247731BK1 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part C4F247731BK1?
You can download the C4F247731BK1 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of C4F247731BK1?
Hammond Manufacturing
