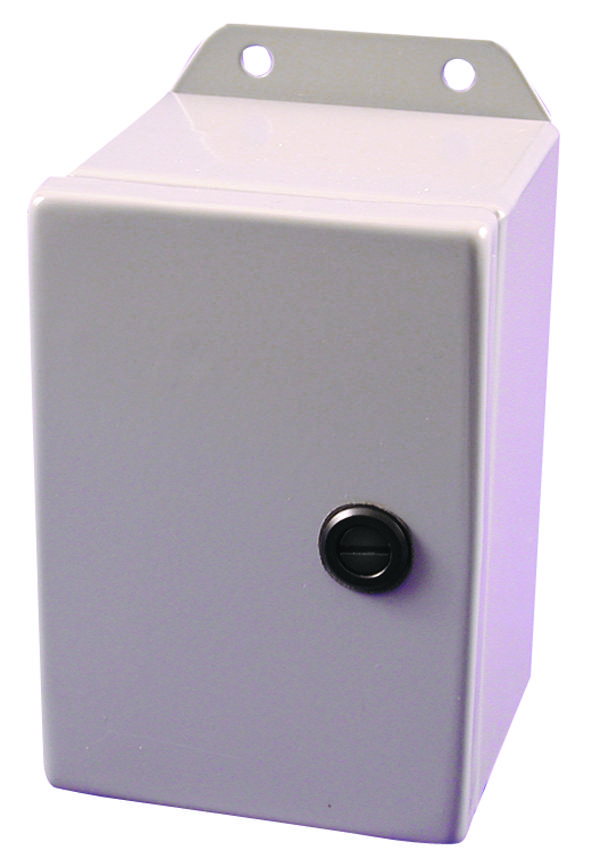

Hammond Manufacturing EJ16106 junction box
The EJ16106 is a mild steel junction box designed to enclose electrical and electronic equipment while providing protection in harsh environments. Suitable for use as instrument enclosures, control housings for electric, hydraulic, or pneumatic systems, electrical junction boxes, or terminal wiring enclosures. The box features a sleek design that complements high-tech equipment installations. It includes a bonding stud on the door and a grounding stud on the enclosure. The cover and body are coated with a durable, recoatable ANSI 61 smooth grey powder finish. The enclosure has a NEMA-3R, 4, 12, and 13 protection rating, constructed from 16-gauge formed steel with seamless, welded seams free of knockouts, cut-outs, or holes. A formed lip prevents external liquids and contaminants from entering. It is equipped with 14-gauge welded mounting brackets, a 304 stainless steel hinged cover that opens 180°, and quarter-turn bump latches made of black zinc die-cast, which require a tool for opening. A seamless gasket provides a secure seal. Larger models feature a removable galvanized inner panel, and internal threaded weld studs facilitate mounting of inner panels. The enclosure also includes grounding and panel mounting hardware suitable for various industrial applications.
Hammond Manufacturing EJ16106 junction box Specifications:
- Body and cover formed from 16 gauge steel
- Seamless welded seams without knockouts, cutouts, or holes
- Formed lip prevents ingress of liquids and contaminants
- Includes 14 gauge welded mounting brackets
- 304 stainless steel hinges providing 180° opening
- Quarter-turn black zinc die-cast latches requiring a tool for opening
- Seamless poured-in gasket for secure sealing
- Large models include removable galvanized inner panel
- Internal threaded weld studs for inner panel mounting
- Bonding and grounding studs provided
- Finished with recoatable ANSI 61 smooth gray powder coating
- Protection rated at NEMA 3R, 4, 12, and 13
- Constructed from durable steel suitable for harsh environments
Buy the Hammond Series Eclipse Junior Junction Box: EJ16106
Enhance your electrical setup with the Hammond EJ16106 junction box, designed for durability and protection in harsh environments. Made from 16-gauge steel with seamless welded seams, it features a durable powder coat finish in ANSI 61 gray, ensuring resistance against industrial elements. The enclosure includes stainless steel hinges, quarter-turn latches requiring a tool for secure access, and a gasket to prevent contaminants. Larger models also offer removable inner panels and threaded weld studs for easy mounting, making it an essential component for reliable electrical installation in demanding settings.
Get Hammond EJ16106 today—built for industrial enclosure protection and long-lasting durability.
