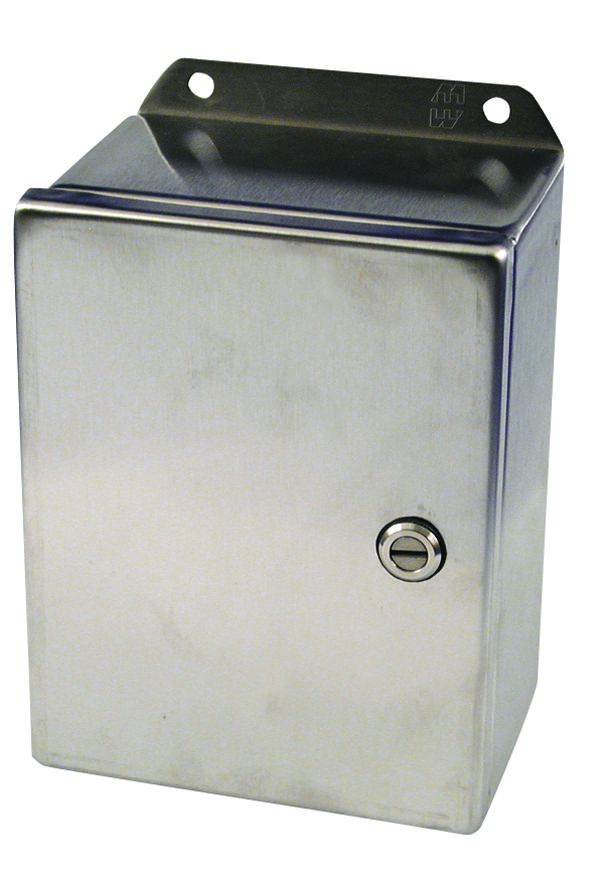

Hammond Manufacturing EJ16146SS Stainless Steel Junction Box
The EJ16146SS is a stainless steel junction box designed for industrial applications such as instrument enclosures, electrical, hydraulic, or pneumatic control housings, electrical junctions, or terminal wiring enclosures. Made from 16-gauge 304 stainless steel, it offers excellent protection against moisture, corrosion, and physical damage. The enclosure features smooth, welded seams without knockouts or holes, a formed lip to prevent the ingress of liquids and contaminants, and a continuously hinged cover with stainless steel hinges that opens 180°. It is equipped with quarter-turn latches requiring a tool for opening and includes a poured-in-place gasket for sealing. For larger sizes, a removable galvanized inner panel is included, along with tapped studs for mounting panels inside. The enclosure also provides grounding and panel mounting hardware and has a NEMA-3R, 4, 4X, 12, and 13 protection rating. It features a natural brushed stainless steel finish, with a bonded stud on the door and a grounding stud on the enclosure, suitable for harsh or wet environments where corrosion resistance is essential.
Hammond Manufacturing EJ16146SS Stainless Steel Junction Box Specifications:
- Material: 16 gauge 304 stainless steel
- Finish: Brushed stainless steel
- Seam: Continuous welds, no knockouts or cutouts
- Gasket: Poured-in-place seal
- Cover: Hinged 180° with stainless steel hinges
- Latches: Quarter-turn, tool-required, made from 316 stainless steel
- Inner Panel: Removable galvanized steel on larger sizes
- Mounting: Tapped studs for inner panels, welded brackets for enclosure mounting
- Grounding: Bonding and grounding studs included
- Protection Ratings: NEMA 3R, 4, 4X, 12, 13, IEC 60529 IP66
- Size: Ranges from 4
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 22
- 23
Buy the Hammond Series Eclipse Jr Stainless Steel Junction Box: EJ16146SS
Order the Hammond EJ16146SS stainless steel junction box online today and ensure robust protection for your electrical and control systems. Crafted from durable 16-gauge 304 stainless steel, it provides excellent corrosion and moisture resistance. Featuring a hinged cover with stainless steel hinges, quarter-turn latches, poured-in-place gasket, and a removable galvanized inner panel for larger sizes, this enclosure is ideal for harsh environments. Complete with grounding hardware and mounting studs, it guarantees safe, secure, and reliable electrical installations in wet or corrosive conditions. Shop now for quick, convenient online purchase.
Buy Hammond EJ16146SS now and experience unmatched reliability and corrosion resistance in demanding industrial environments.
