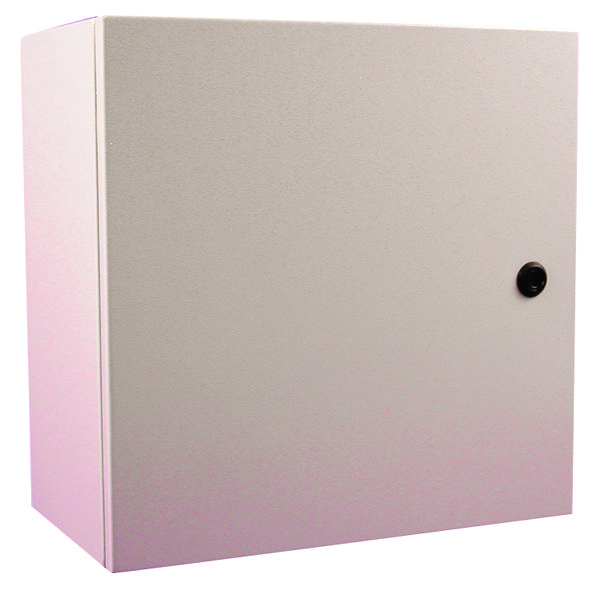

Hammond Manufacturing EN4SD16126GY Wall-Mount Enclosure
The EN4SD16126GY is a wall-mount enclosure made of mild steel, designed to enclose and protect electrical and electronic equipment in harsh environments. It features a sleek design with hidden hinges and attractive latching systems, making it suitable for high-tech installations. The enclosure includes reinforced door stiffeners for added strength and mounting flexibility. Equipped with a quarter-turn latch and multi-point, key-lockable handle, both zinc die-cast with a black epoxy finish, it offers enhanced security. The cover and enclosure are phosphatized and coated internally and externally with a recoatable ANSI 61 smooth grey powder coating. It provides NEMA 3R, 4, and 12 protection ratings, is formed from 14 or 16 gauge steel with seamless, ground welds, and features a formed lip to prevent the ingress of liquids and contaminants. The door can be easily removed and interchanged for modifications. It incorporates a poured-in-place gasket, collar studs for inner panel mounting, bonding and grounding studs, stainless steel hinges and hinge pins, and a door alignment guide on wider models. Suitable for industrial applications.
Hammond Manufacturing EN4SD16126GY Wall-Mount Enclosure Specifications:
- Material: Mild steel, 14 or 16 gauge
- Protection Ratings: NEMA 3R, 4, 12; IEC IP66
- Finish: Recoatable ANSI 61 smooth grey powder coating
- Seams: Seamless welded, ground smooth
- Door: Removable, with hidden hinges, quarter-turn latch, and multi-point lock
- Hinges: Stainless steel
- Hinge pins: Stainless steel
- Door Handle: Zinc die-cast, black epoxy finish, key lockable
- Door stiffeners: Reinforced for strength and mounting
- Gasket: Poured-in-place
- Inclusion: Collar studs for inner panel, grounding and bonding studs
- Size: 16 x 12 x 6 inches (Dimension A x B x C)
- Finish inside and out: Powder coated
- Application: Enclosing electrical/electronic equipment in industrial environments
Buy the Hammond EN4SD16126GY – Reliable Electrical Enclosure for Industrial Applications
Secure your electrical components with the Hammond wall-mount enclosure designed for demanding industrial environments. Made from durable mild steel, it features hidden hinges, a secure key-lock handle, and a protective powder coating for corrosion resistance. Its seamless welded construction and gasket ensure IP66 protection against dust and water. Easy to remove and interchanging doors allow quick modifications. Reinforced stiffeners, grounded bonding studs, and stainless-steel hinges enhance durability and safety. Ideal for high-tech applications requiring reliable enclosure protection in harsh settings.
Buy Hammond EN4SD16126GY now and experience unmatched durability, security, and protection in harsh industrial environments with easy installation features.
