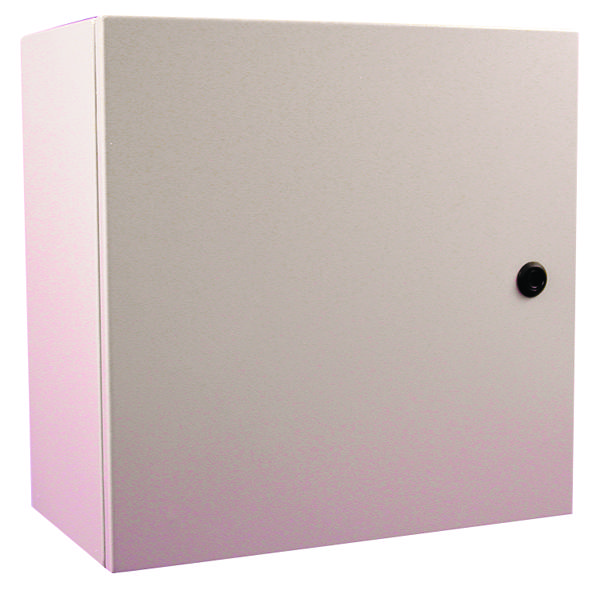

Hammond Manufacturing EN4SD20126GY Wallmount Enclosure
The wallmount enclosure from the Eclipse Series is designed for industrial and electronic equipment. Made with 14 or 16 gauge steel, it provides excellent protection against harsh environments. Features include smooth welded seams, optional door stiffeners for added strength, hidden hinges, attractive latching mechanisms with quarter turn/handle, and a poured-in-place gasket for sealing. The enclosure meets UL 508, CSA standards, and IEC 60529 IP66 rating. Available in light gray or gray textured finishes, it offers a range of sizes, accessories, and easy mounting options suitable for high-tech industrial applications.
Hammond Manufacturing EN4SD20126GY Wallmount Enclosure Specifications:
- Material: Formed 14 or 16 gauge steel
- Finish: Powder-coated, ANSI 61 gray or RAL7035 light gray textured
- Sealing: Poured-in-place gasket
- Standards: UL 508 Type 3R, 4, 12; CSA Type 3R, 4, 12; IEC 60529, IP66
- Hinges: Stainless steel
- Latch: Zinc diecast, black epoxy finish, quarter turn/ multi-point lock
- Door: Removable, interchangeable, with safety lock
- Ventilation: Accessories available
- Dimensions: 12.00 x 10.00 x 6.00 inches (for Part Number EN4SD20126GY)
- Weight: 14.00 lbs
Buy the Hammond Series Eclipse Enclosure: EN4SD20126GY
Order the Hammond Series Eclipse Wallmount Enclosure EN4SD20126GY online today for durable, high-quality protection of electrical and electronic equipment in demanding industrial environments. Featuring IP66 sealing, robust steel construction, and easy access with removable, lockable doors, this enclosure is suitable for high-tech installations. With various sizes and accessories, it offers flexible mounting and enhanced strength to ensure long-lasting performance. Purchase now to secure reliable, industrial-grade protection and improve your equipment safety and organization efficiently.
Buy Hammond Series Eclipse EN4SD20126GY now and experience unmatched reliability and performance for industrial electrical enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing EN4SD20126GY?
You can click on the BUY or RFQ button to purchase EN4SD20126GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part EN4SD20126GY?
You can download the EN4SD20126GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of EN4SD20126GY?
Hammond Manufacturing
