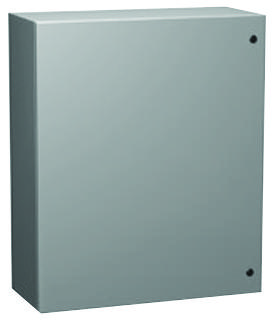

Hammond Manufacturing EN4SD201610GY Wall-Mount Steel Enclosure
The EN4SD201610GY is a mild steel, wall-mount enclosure designed to house electrical and electronic equipment while offering protection against harsh environments. It features a visually appealing design with hidden hinges and attractive latching mechanisms, making it suitable for high-tech installations. The enclosure includes reinforced door stiffeners for added strength and flexibility for mounting options. Equipped with a quarter-turn latch and a multi-point, key-lockable handle made from zinc die-cast with a black epoxy finish, it ensures security and ease of access. The cover and enclosure are phosphatized and coated internally and externally with a smooth grey powder finish, compliant with ANSI 61 standards. It offers NEMA 3R, 4, and 12 protection ratings, constructed from 14 or 16 gauge steel with seamless, welded seams that are ground smooth. The enclosure design incorporates features like a formed lip to prevent fluid ingress, easily removable and interchangeable doors, and a poured-in-place gasket for sealing. It includes collar studs for mounting inner panels, bonding and grounding studs for electrical safety, and stainless steel hinges and hinge pins for durability. For wider models, door alignment guides assist in precise installation. This enclosure is ideal for industrial applications requiring robust environmental protection.
Hammond Manufacturing EN4SD201610GY Wall-Mount Steel Enclosure Specifications:
- Material: Mild steel, formed from 14 or 16 gauge steel
- Finish: Phosphatized and powder coated with ANSI 61 grey (GY) or RAL7035 light gray (LG)
- Protection Standards: UL 508 Type 3R, 4, 12; CSA Type 3R, 4, 12; NEMA Type BR, 4, 12; IEC 60529 IP66
- Door Features: Hidden hinges from stainless steel, quarter-turn latch, multi-point key lock handle in zinc diecast with black epoxy
- Sealing: Poured-in-place gasket for environmental sealing
- Construction: Seamless welded seams, ground smooth; formed lip to exclude fluids and contaminants
- Hardware: Collar studs for internal panels, grounding and bonding studs, stainless steel hinges and pins
- Dimensions: Width 20.00 inches, Height 16.00 inches, Depth 10.00 inches
- Weight: 36 lbs
Buy the Buy Hammond Enclosure Part Number EN4SD201610GY Online
Purchase the Hammond Series EN4SD201610GY enclosure online now to secure high-quality, durable protection for your electrical and electronic devices. Crafted from 14 or 16 gauge steel with seamless welded seams and a corrosion-resistant powder finish, this enclosure meets NEMA 3R, 4, 12, and IP66 standards, making it ideal for harsh industrial settings. Its hidden hinges, secure quarter-turn latch, and optional internal panels provide versatile mounting options. Invest in this reliable, easy-to-install enclosure for long-lasting performance in demanding environments and enjoy fast delivery through our online ordering system.
Order your Hammond Series EN4SD201610GY wall-mount steel enclosure today and ensure robust protection for your electrical equipment in demanding environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing EN4SD201610GY?
You can click on the BUY or RFQ button to purchase EN4SD201610GY from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part EN4SD201610GY?
You can download the EN4SD201610GY datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of EN4SD201610GY?
Hammond Manufacturing
