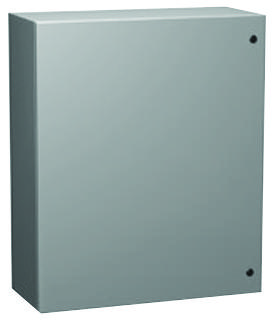

Hammond Manufacturing EN4SD24248GY Wallmount Enclosure
The EN4SD24248GY is a Type-4 wall-mount enclosure constructed from mild steel, part of the Eclipse series. It features a hinged door with a quarter-turn handle, designed to enclose electrical and electronic equipment while providing protection against harsh industrial environments for wall-mounted applications. The enclosure boasts smooth, welded seams finished with a ground surface, door stiffeners for added strength, and a formed lip to prevent the ingress of liquids and contaminants. The door latch employs a quarter-turn slot requiring a tool for safety, and the gasket is a seamless poured-in-place type. Collars are included for mounting inner panels, and grounding is facilitated by a bonding stud on the door and a grounding stud inside the enclosure. Hinges and hinge pins are made from stainless steel 304. The black epoxy-coated zinc die-cast latch features a multi-point mechanism that is key lockable. Suitable for use in consumer electronics, this enclosure combines durability with an attractive design, including hidden hinges and modern latching systems.
Hammond Manufacturing EN4SD24248GY Wallmount Enclosure Specifications:
- Material: Mild steel, formed 14 or 16 gauge
- Finish: Phosphatized, powder coated in ANSI 61 gray or RAL7035 textured light gray
- Hinges: Stainless steel 304
- Hinge pins: Stainless steel
- Door latch: Zinc diecast, black epoxy finish, multi-point key lockable
- Seam: Welded and ground smooth
- Gasket: Poured-in-place seal
- Bonding studs: Provided for grounding
- Formed lip: To prevent liquids and contaminants ingress
- Protection standards: UL 508 Type 3R, 4, 12; CSA Type 3R, 4, 12; NEMA Type BR, 4, 12; IEC 60529, IP66
- Application: Enclosing electrical and electronic equipment in harsh industrial environments for wall-mount
- Sizes: Various (e.g., 24x48 inches), weight varies by size, approximately 95 lbs for the 24x48 model
Buy the Hammond Series Eclipse Wallmount Enclosure: EN4SD24248GY
Order the Hammond Eclipse series wallmount enclosure EN4SD24248GY online today to ensure your electrical components are protected in demanding industrial environments. Crafted from durable mild steel with a protective powder coat, this enclosure features stainless steel hinges and hinges pins, a secure quarter-turn lockable latch, and seamless gasket sealing for maximum protection against dust, liquids, and contamination. Its construction meets UL, CSA, NEMA, and IP66 standards, making it ideal for demanding applications. Easy to install with mounting collars and grounding studs, this enclosure combines reliable performance with sleek aesthetics—perfect for industrial, electronics, and control systems. Purchase now for fast, secure online delivery and safeguard your equipment efficiently.
Buy Hammond Series Eclipse EN4SD24248GY wallmount enclosure now and experience unmatched durability, industrial protection, and modern design.
