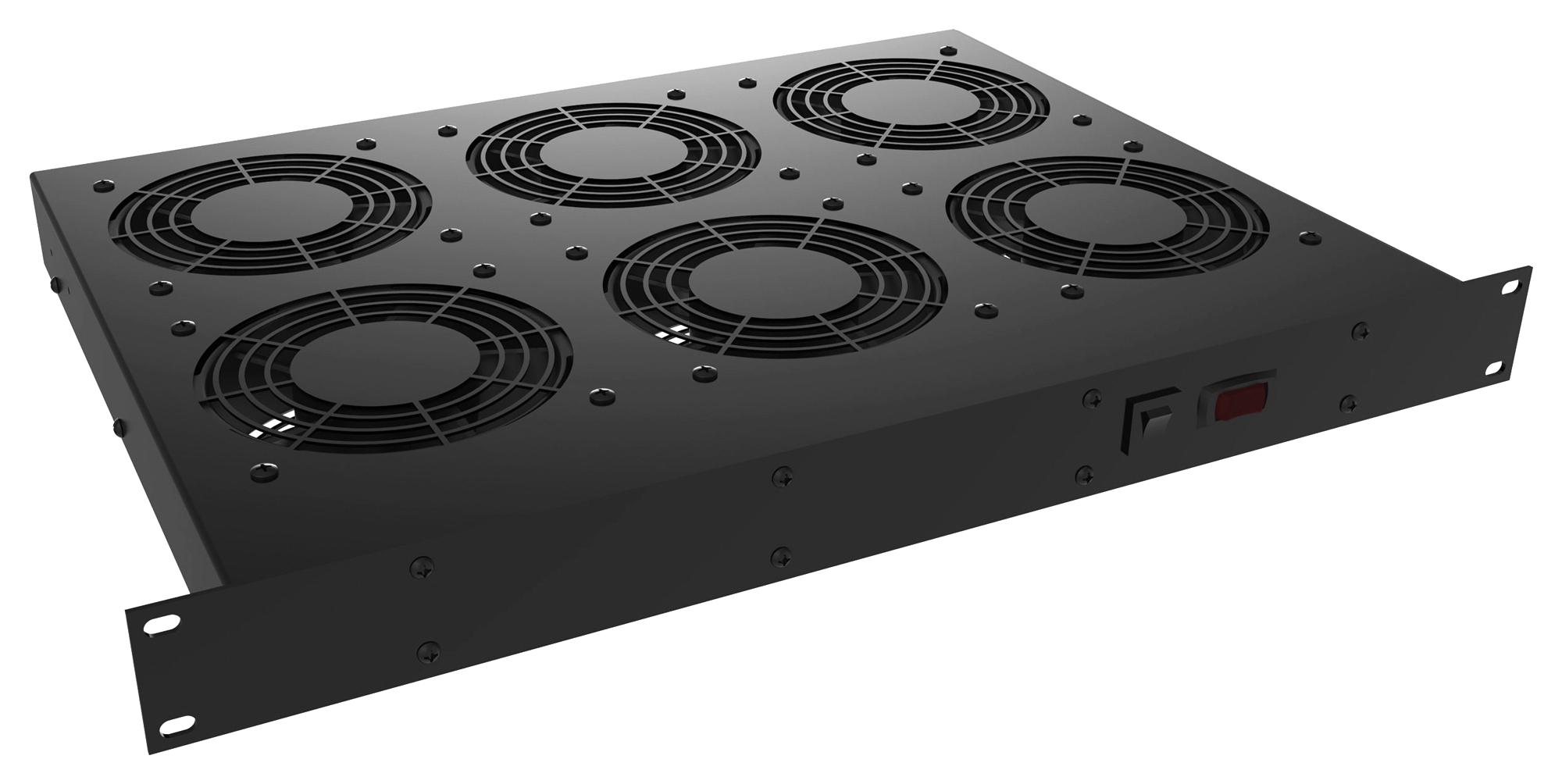

Hammond Manufacturing FT600HA1220BK Rack Mount Fan Tray
The FT600HA1220BK is a 6-fan rack mount fan tray designed for 19" racks, offering efficient cooling with a flow rate of 600 CFM. It operates on 220VAC, features thermally protected ball bearing fans, and includes an IEC input receptacle for easy power connection. The fan tray is finished in textured black powder paint, comes fully assembled, and includes integral finger guards for safety. Ideal for spot cooling or overall cabinet airflow management in electronic and industrial enclosures.
Hammond Manufacturing FT600HA1220BK Rack Mount Fan Tray Specifications:
- Number of Fans: 6
- Flow Rate: 600 CFM
- Operating Voltage: 220VAC
- Frequency: 50/60Hz
- Power Consumption: 13.00 Amps, 19.20 Wattage
- Fan Type: Thermally protected, ball bearing
- Case Width: 17 inches
- Finish: Textured black powder paint
- Includes IEC320-C14 input receptacle
- Shipped Fully Assembled
- Dimensions: Case depth approximately 1.75 inches (1U)
- Noise Level: 65 dB
- Mounting: 19-inch rack mount with adjustable rear brackets
Buy the Hammond Series FT Fan Tray: FT600HA1220BK
Enhance your electronic enclosure cooling with the Hammond FT600HA1220BK rack mount fan tray. Featuring six high-quality, thermally protected ball bearing fans operating at 220VAC, it provides a flow rate of 600 CFM for effective airflow. Fully assembled with IEC input, this sturdy, black powder-coated unit is ideal for efficient spot cooling or overall cabinet airflow management. Easy to install with adjustable rear brackets, it ensures reliable operation and long-term performance for industrial and electronic enclosures.
Order your Hammond Series FT600HA1220BK fan tray today and upgrade your cabinet cooling system with reliable, high-performance air circulation.
