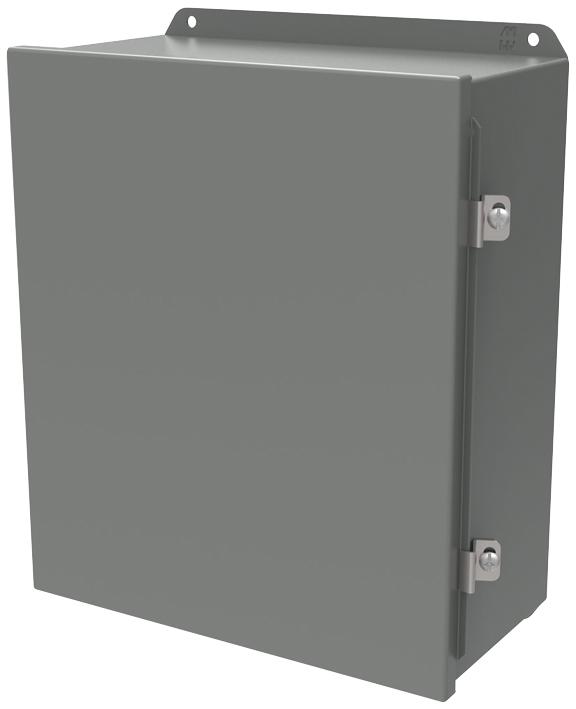

Hammond Manufacturing HJ10106HLP Weatherproof Junction Box
The HJ10106HLP is a heavy-duty industrial junction box designed for outdoor and wet environments, meeting UL 508 Type 3R, 4, 12, and 13 standards. Constructed from 14-gauge steel with a smooth ANSI 61 gray powder coating, it features a continuous hinged door secured with stainless steel clamps and a poured-in-place gasket for full weather protection. Internal threaded weld studs facilitate mounting inner panels, while stainless steel hinges and grounding studs ensure durability and safety in electrical or control applications. The enclosure provides robust protection for electrical control housings and terminal wiring in demanding environments.
Hammond Manufacturing HJ10106HLP Weatherproof Junction Box Specifications:
- Construction: 14 gauge steel body and 14 gauge steel cover
- Finish: ANSI 61 gray powder coating
- Standards: UL 508 Type 3R, 4, 12, 13; CSA Type 3R, 4, 12, 13; IEC 60529 IP66
- Seam: Welded, seamless poured-in-place gasket
- Internal Mounting: Threaded weld studs for inner panels
- Hinge: Stainless steel continuous hinge, removable hinge pin
- Fastening: Stainless steel clamps and screws
- Grounding: Bonding stud on door and grounding stud inside
- Body material: 14 gauge steel; cover from 14 gauge steel
- Finish includes phosphatizing and powder coating for corrosion resistance
- Suitable for instrument enclosures, electrical, hydraulic, or pneumatic control housings
- Provides protection against water ingress, suitable for outdoor applications
Buy the Buy Hammond Junction Box HJ10106HLP Part Number HJ10106HLP Online
Order the Hammond weatherproof junction box HJ10106HLP online now to ensure reliable outdoor electrical installations. Constructed from robust steel with a seamless gasket and stainless steel clamps, this enclosure offers excellent protection against harsh weather conditions. It complies with UL 508 Type 3R, 4, 12, and 13 standards, making it suitable for various outdoor control and electrical housing applications. Its corrosion-resistant coating and heavy-duty hinges make installation and maintenance easy, providing a long-lasting, secure solution for outdoor electrical wiring and equipment protection.
Get Hammond HJ10106HLP today—built for durability and weatherproof protection for electrical control housing.
