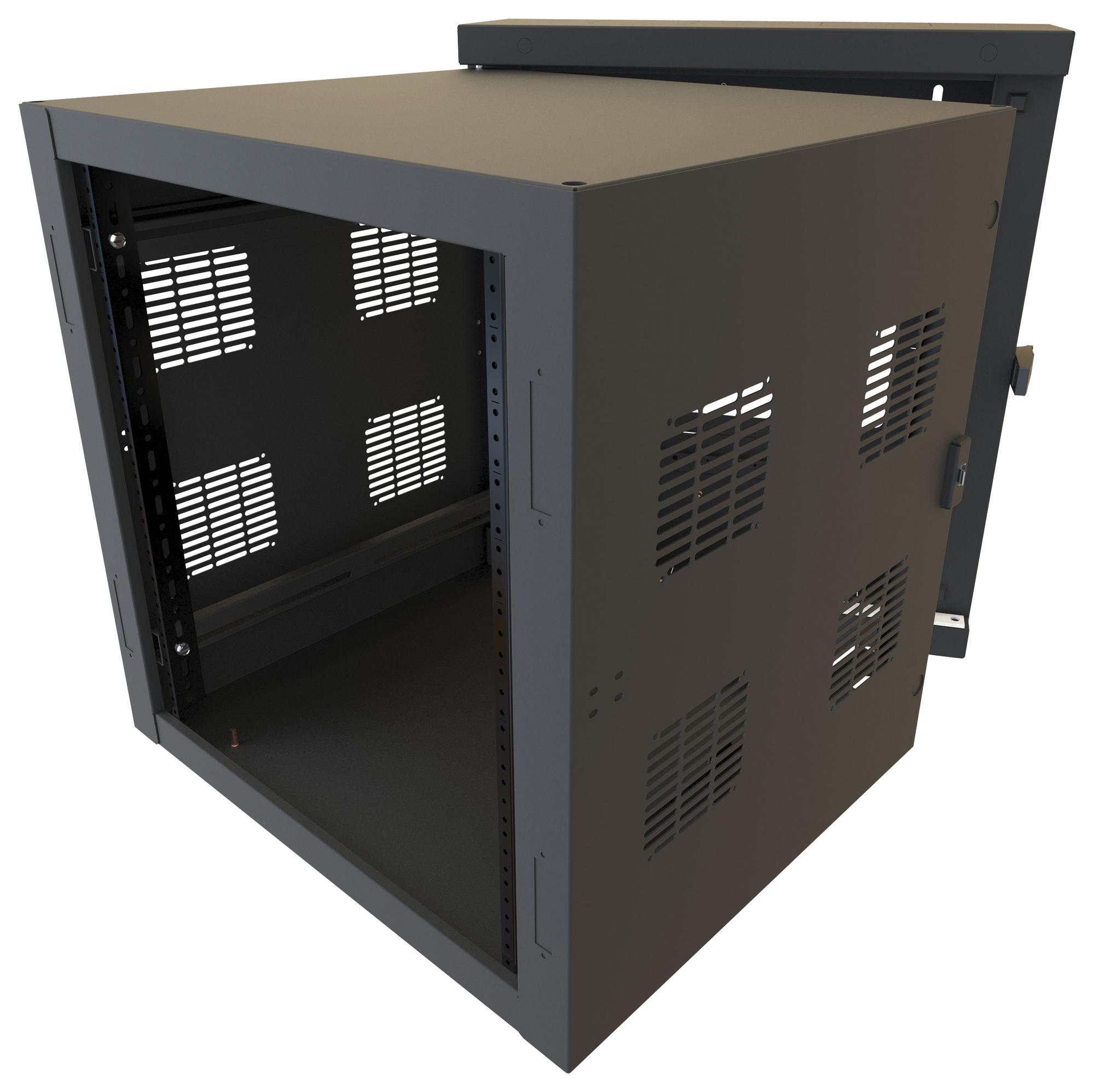

Hammond Manufacturing HWC2418U27BK Wall Mount Rack Cabinet
The Swing-Out Sectional Wall Mount Rack Cabinet from the HWC Series by Hammond Manufacturing offers heavy-duty construction with a 300 lbs static load capacity, perfect for professional data and equipment installation. Crafted from 14-gauge welded steel with powder-coated finish, it features adjustable depth mounting rails, cable management lances, and optional locking doors including perforated, tinted window, and solid options. Designed for quick installation, it supports up to 18U of equipment, includes rear cable access ports, and can be customized with optional accessories for enhanced security and dust protection, making it ideal for versatile, professional server and networking environments.
Hammond Manufacturing HWC2418U27BK Wall Mount Rack Cabinet Specifications:
- Material: 14-gauge welded steel (rear), 16-gauge center section and doors
- Finish: Rugged sand-textured black powder paint
- Load Capacity: UL 2416 Rated up to 300 lbs (159 kg)
- Mounting Rails: EIA compliant adjustable depth, includes tapped (10-32) rails
- Dimensions: Overall height 38.31 inches, width 24.68 inches, depth 26.78 inches
- Rack Units: Supports up to 18U of equipment
- Cable Management: Multiple lances and large rear openings
- Knockouts: Top, bottom, side for conduit and fan access
- Door Options: Perforated, tinted window, or solid (optional)
- Mounting: Heavy-duty keyhole for wall mounting, grounding lugs provided
- Compliance: TAA, RoHS, UL 2416 rated
Buy the Buy Hammond Wall Mount Rack Cabinet HWC Series Part Number HWC2418U27BK Online
Secure your networking and server equipment with the Hammond Wall Mount Rack Cabinet from the HWC Series. Crafted from heavy-duty steel, it features adjustable depth mounting rails, cable management lances, and optional locking doors for enhanced security. Its robust construction supports up to 300 lbs and up to 18U of equipment, making installation quick and efficient. The cabinet includes rear cable access ports, conduit knockouts, and grounding points. Perfect for professional environments requiring reliable, versatile, and secure enclosure solutions. Purchase online today to upgrade your data center infrastructure.
Get Hammond HWC2418U27BK today—designed for professional network and server equipment with adjustable mounting rails and high weight capacity.
Frequently Asked Questions
Where can I buy Hammond Manufacturing HWC2418U27BK?
You can click on the BUY or RFQ button to purchase HWC2418U27BK from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part HWC2418U27BK?
You can download the HWC2418U27BK datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of HWC2418U27BK?
Hammond Manufacturing
