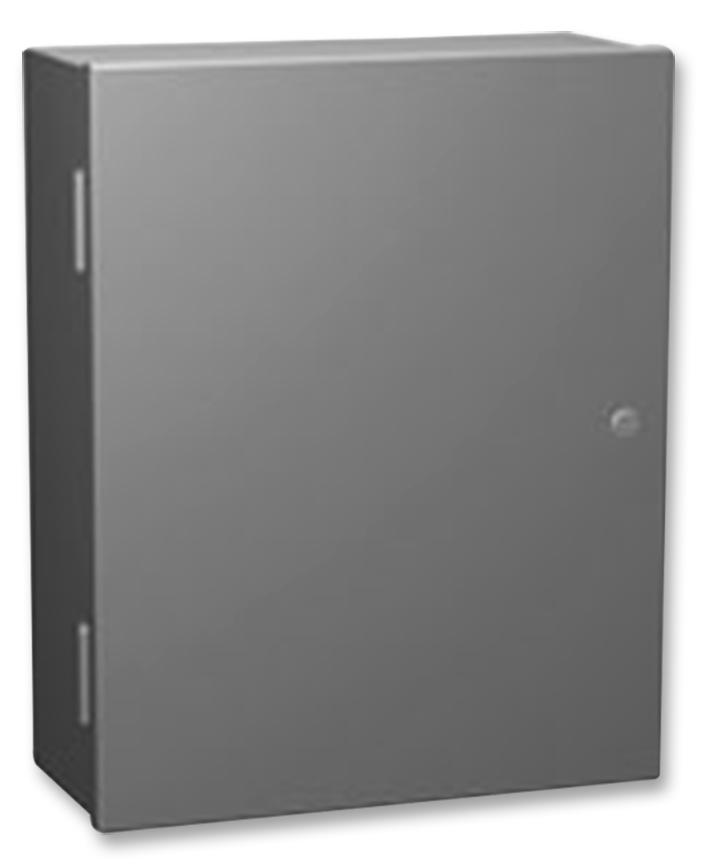

Hammond Manufacturing N1A242012 Steel Wallmount Enclosure
This indoor Type 1 mild steel wallmount enclosure from Hammond Manufacturing provides reliable housing for controls, instruments, and components. Constructed from 12-gauge steel, it features a protective ANSI 61 gray powder coat finish and a removable white powder-coated interior panel. Its hinged door with quarter turn latch offers easy access, with dual latches for 30-inch and higher units. The enclosure includes mounting holes, grounding studs, and bonding provisions for safe installation, adhering to UL50 and CSA Type 1 standards with NEMA 1 and IEC IP20 ratings, making it suitable for indoor electrical control systems.
Hammond Manufacturing N1A242012 Steel Wallmount Enclosure Specifications:
- Material: Formed and spot welded from 12 gauge steel
- Finish: ANSI 61 gray powder coating for enclosure and door, white powder coating for inner panel
- Construction: Hinged door with quarter turn latch, removable inner panel, mounting holes in rear
- Standards: UL50 Type, CSA Type 1, NEMA Type 1, IEC 60529 IP20
- Dimensions: Varies per model, e.g., 24x20x12 inches (width x height x depth)
- Features: Bonding stud on door, grounding stud, slip hinges, mounting in rear
- Application: Indoor control, instrument, electrical component housing
- Included: Inner removable panel, fastened with collar studs
Buy the Hammond Series Type 1 Mild Steel Enclosure: N1A242012
Discover the durable steel wallmount enclosure designed for indoor electrical control cabinets. Featuring a hinged door, removable interior panel, and grounding provisions, it ensures safe and reliable housing for controls and instruments. Crafted from 12-gauge steel with ANSI 61 gray powder coating, this enclosure meets UL50 and CSA Type 1 standards while offering easy access and mounting options. Ideal for industrial and commercial applications, it combines robust construction with convenient features to support your electrical system needs efficiently.
Order your Hammond Series Type 1 Mild Steel Enclosure N1A242012 today and provide your electrical projects with durable, indoor control housing solutions.
Frequently Asked Questions
Where can I buy Hammond Manufacturing N1A242012?
You can click on the BUY or RFQ button to purchase N1A242012 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part N1A242012?
You can download the N1A242012 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of N1A242012?
Hammond Manufacturing
