Hammond Manufacturing N1A24249 Steel Wallmount Enclosure

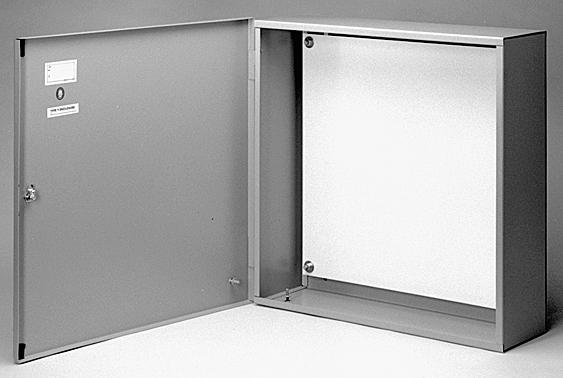

The N1A24249 is a wall-mount steel enclosure designed for indoor use to house controls, instruments, and components that do not require oil-tight or dust-tight protection. It features a removable interior panel available in 12 or 14 AWG gauge, mounted on collar studs at the rear. The enclosure has a door secured with a slotted quarter-turn latch, with additional latches on units 30 inches and taller. Both the door and enclosure include bonding and grounding studs for electrical safety. The enclosure and door are finished with ANSI 61 grey powder coating, while the inner panel is coated in white powder coating. It provides IP20 and NEMA 1 protection ratings, is constructed from formed and spot-welded steel, and includes mounting holes in the rear. The door is mounted on slip hinges, with a piano hinge used on 12 AWG gauge units.
Hammond Manufacturing N1A24249 Steel Wallmount Enclosure Specifications:
- Material: Formed and spot-welded steel
- Gauge: 12 or 14 AWG
- Finish: ANSI 61 grey powder coating for enclosure and door, white powder coating for inner panel
- Protection Rating: IP20, NEMA Type 1
- Mounting: Rear mounting holes included
- Door: Slip hinges, quarter-turn latch, additional latch for units over 30 inches
- Bonding: Bonding and grounding studs included
- Application: Indoor use for controllers, instruments, components
- Dimensions: 24 inches high, 24 inches wide, 9 inches deep
- Construction: Formed steel, formed and spot welded
- Hinges: Slip hinges, piano hinge on 12 gauge models
- Standards: UL50 Type, CSA Type 1, conforming to IEC 60529, IP20
- Weight: 55 lbs
Buy the Hammond 24x24x9 N1A24249 – Reliable Steel Enclosure for Industrial Applications
Order the Hammond Steel Wallmount Enclosure N1A24249 today for secure indoor housing of control components. Constructed from rugged steel with powder coating, it ensures durability and corrosion resistance. The enclosure features a removable inner panel, quarter-turn latch, and bonding studs for electrical safety. Perfect for industrial, manufacturing, or automation environments, it provides IP20 and NEMA 1 protection ratings, with rear mounting holes for easy installation. Trust Hammond for quality, offering easy access, excellent corrosion resistance, and reliable protection for your control equipment. Buy now for fast delivery!
Buy Hammond N1A24249 now and experience unmatched reliability and performance with durable steel construction and IP20 protection for indoor control housing.
