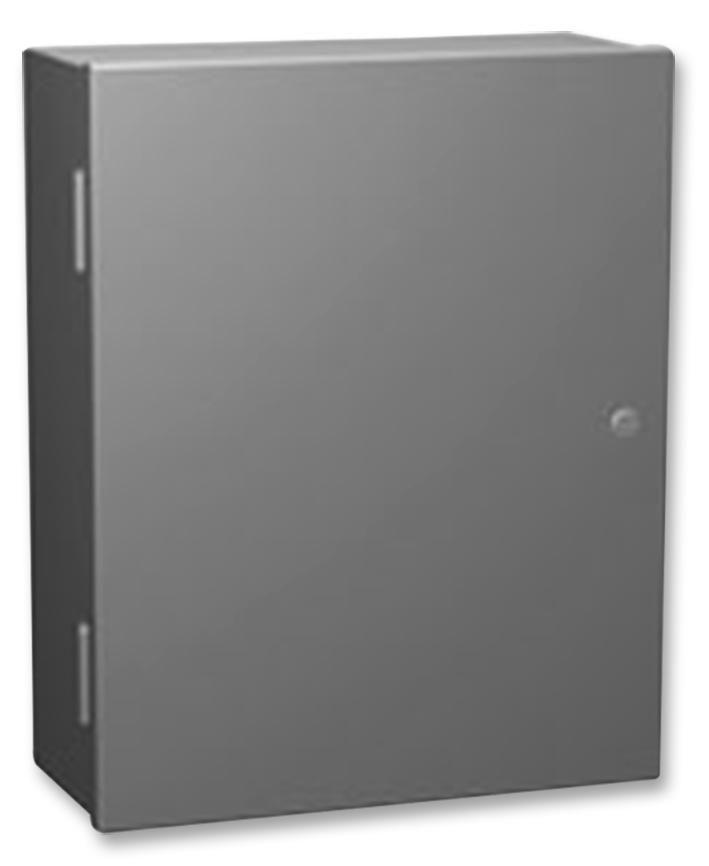

Hammond Manufacturing N1A30209 Wallmount Enclosure
The wallmount enclosure is designed for indoor use to house controls, instruments, and components, offering protection against dust but not oil-tight. Made from formed and spot-welded 12 or 14 gauge steel, it features a removable rear inner panel mounted on collar studs, and a door with slip hinges secured by a quarter turn latch. The enclosure is finished in ANSI 61 gray powder coating, with a white powder-coated inner panel. It complies with UL50 Type 1, CSA Type 1, and IEC 60529 IP20 standards, making it suitable for industrial control applications.
Hammond Manufacturing N1A30209 Wallmount Enclosure Specifications:
- Material: formed and spot-welded 12 or 14 gauge steel
- Finish: ANSI 61 gray powder coating; inner panel in white powder coating
- Standards: UL50 Type 1, CSA Type 1, IEC 60529 IP20
- Construction: hinged door with quarter turn latch, removable rear inner panel
- Mounting: rear mounting holes, bonding and grounding studs
- Application: indoor use for control panels, instruments, components
- Protection: dust protection, not oil-tight or water-tight
- Dimensions: varies per model, example N1A30209: 30 x 24 x 9 inches
- Compatibility: includes optional panels and ventilation accessories
Buy the Hammond N1A30209 – Reliable Industrial Control Enclosure for Indoor Applications
Buy Hammond N1A30209 industrial wallmount enclosure online today for your control, instrumentation, and component housing needs. Crafted from durable steel with powder coating, it provides reliable dust protection for indoor environments. Featuring a hinged door with quarter turn latch and removable rear panel, it allows easy access and installation. Suitable for a variety of control applications, this enclosure complies with industry standards such as UL50, CSA, and IEC IP20. Order now for fast delivery and dependable performance in your industrial setup.
Get Hammond N1A30209 today—built for indoor control panel and instrument housing with durable steel construction.
