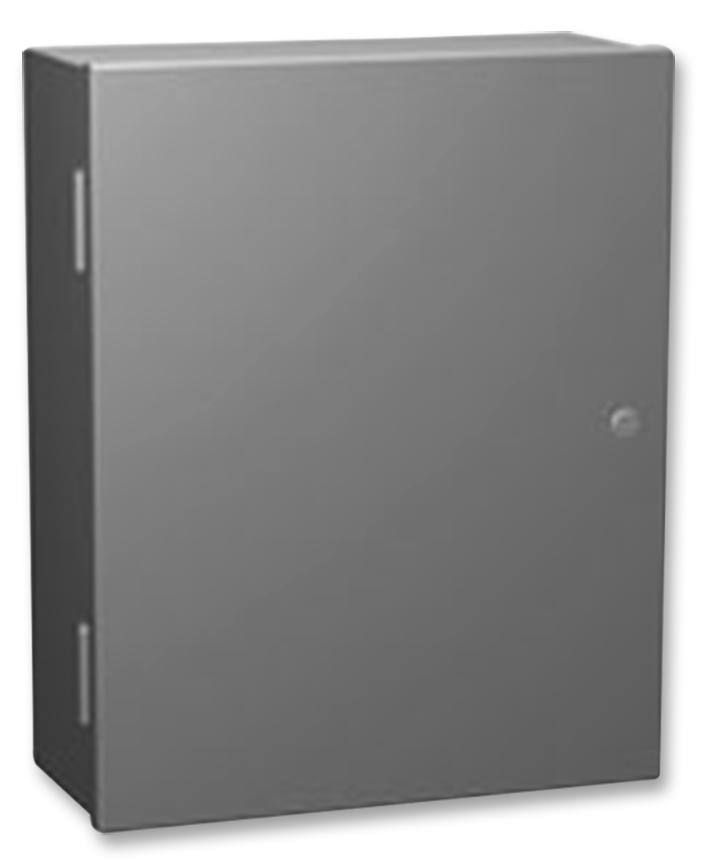

Hammond Manufacturing N1A30249 Wallmount Enclosure
The wallmount enclosure of the 1 Mild Steel Wallmount Enclosure 4 Series is designed for indoor use, housing controls, instruments, and components. Constructed from 12 or 14 gauge steel, it features a powder-coated gray finish, a removable inner panel, and a slip-hinged door with quarter turn latch for easy access and security. Suitable for electrical and control applications, it complies with UL50, CSA Type 1, and IEC 60529 IP20 Standards, with variations in size and mounting options available for versatile installation.
Hammond Manufacturing N1A30249 Wallmount Enclosure Specifications:
- Material: Formed and spot welded 12 or 14 gauge steel
- Finish: ANSI 61 gray powder coating (enclosure and door), white powder coating (inner panel)
- Standards: UL50 Type, CSA Type 1, IEC 60529 IP20
- Door: Slip hinges with slotted quarter turn latch
- Inner Panel: Removable, mounted on collar studs
- Construction: Indoor use, no oil-tight or dust-tight protection required
- Mounting holes: Provided in the rear for installation
- Bonding and grounding: Bonding stud on door, grounding stud in box
- Application: Controls, instruments, and electronic components enclosure
Buy the Hammond Series 1 Wallmount Enclosure: N1A30249
Purchase the Hammond wallmount enclosure N1A30249 online today to protect your electrical controls and instruments. Crafted from durable steel with powder coating, it offers easy access via slip hinges and quarter turn latch. Designed for indoor use, it ensures compliance with UL50 and IEC IP20 standards, providing a reliable solution for control housing needs. With various sizes available, enjoy fast delivery and secure online checkout for your industrial enclosure requirements.
Get Hammond Series 1 Wallmount Enclosure N1A30249 today—built for indoor control panel solutions and long-lasting durability.
Frequently Asked Questions
Where can I buy Hammond Manufacturing N1A30249?
You can click on the BUY or RFQ button to purchase N1A30249 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part N1A30249?
You can download the N1A30249 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of N1A30249?
Hammond Manufacturing
