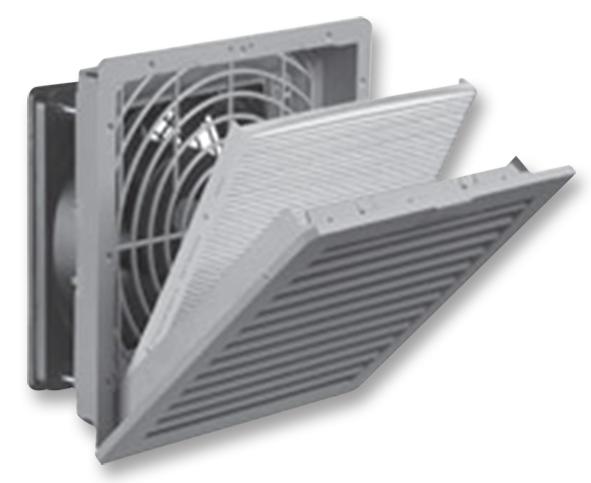

Hammond Manufacturing PF11000T12LG Industrial Filterfan
The 17-38 CFM Filterfans PF GEN4 Series Type 12 are UL-tested, NEMA Type 12 sealing enclosures designed for industrial applications. Made from heat-resistant ABS-FR plastic with UL 94 VO fire safety rating, they feature a patented "Click & Fit" installation system that is hardware-free, ensuring quick setup. These filter fans include CSA-approved motors, are available with optional black grills, and are suitable for maintaining safe, filtered airflow within electrical enclosures. They effectively prevent dust, debris, and moisture ingress, making them ideal for ensuring equipment longevity and operational safety in various industrial environments.
Hammond Manufacturing PF11000T12LG Industrial Filterfan Specifications:
- Voltage: 115V, 230V, 24V options available
- Power: 11W (115V/230V), 2W (24V)
- Airflow capacity: 17 CFM (PF 11000), 38 CFM (PF 22000)
- Filter material: Type 12 filter mat
- System protection: NEMA Type 12, IP 55
- Dimensions: 109x109x62 mm (height x width x installation depth)
- Weight: 0.55 kg (approximate), optional black grills available
- Filtration efficiency: 0.88–0.91, G3 to G4 grade
- Construction: Thermoplastic housing, self-extinguishing UL 94 VO
- Connection: 2 wires, 310 mm terminal strip
- Max static pressure: 38 Pa
- Fitting position: Vertical or any orientation
- Bearing type: Sleeve bearings
Buy the Buy Hammond Filterfans PF GEN4 Series Part Number PF11000T12LG Online
Purchase Hammond Industrial Filterfans PF GEN4 Series online today for efficient cooling of electrical enclosures. These UL-tested, NEMA Type 12 rated fans offer quick, hardware-free "Click & Fit" installation, ensuring fast setup in industrial environments. Made from heat-resistant ABS-FR plastic with UL 94 VO fire safety rating, they include CSA-approved motors and optional black grills. With airflow capacities of 17 and 38 CFM, filtration efficiencies up to 91%, and durable thermoplastic housing, these fans provide long-lasting, safe operation for maintaining optimal equipment performance.
Get Hammond Filterfans PF11000T12LG today—built for industrial enclosure cooling with reliable airflow and easy installation.
