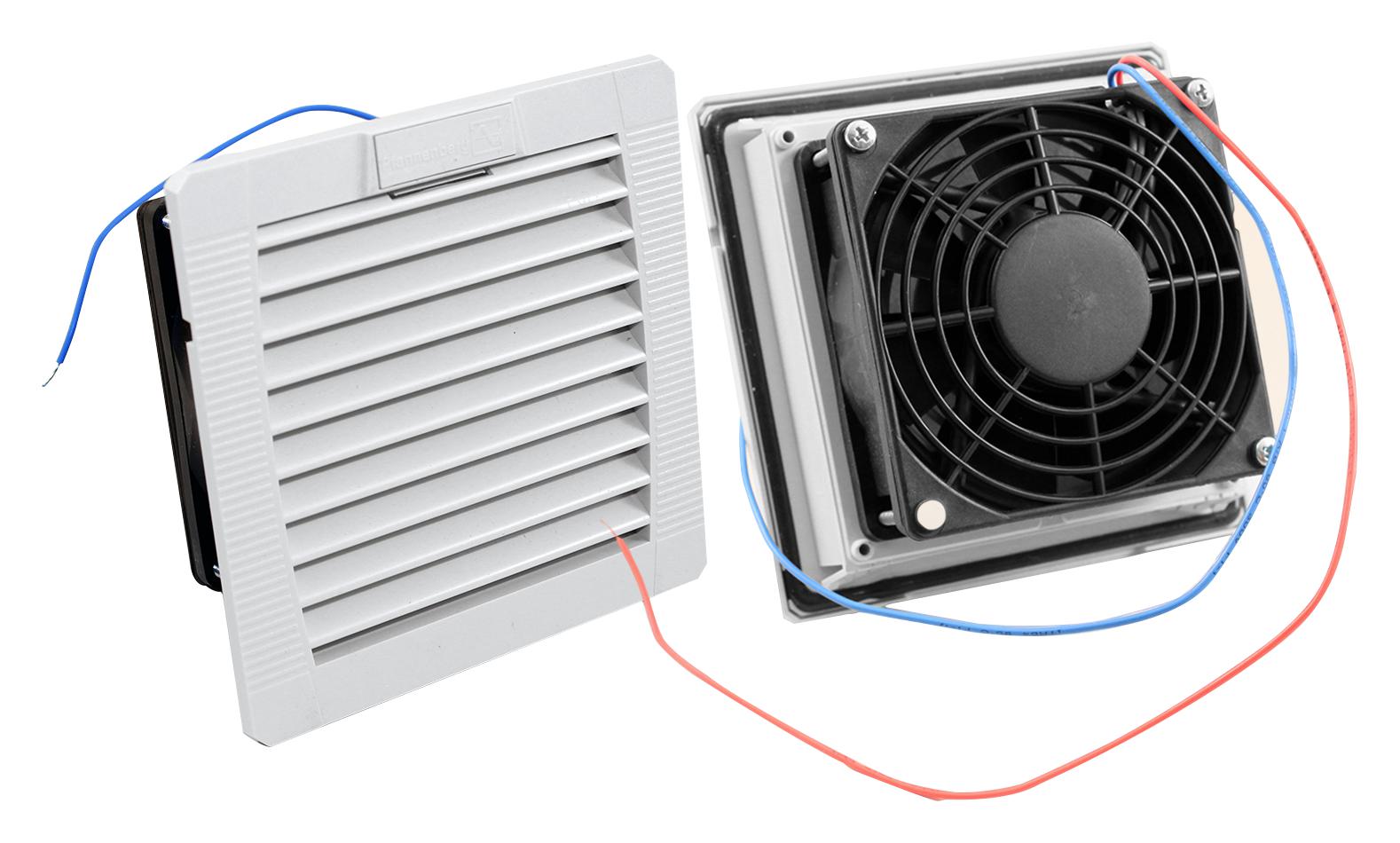

Hammond Manufacturing PF11000T12LG24 Industrial Filter Fan
The PF11000T12 series is a high-quality, UL-listed filter fan designed for NEMA Type 12 enclosures, offering efficient airflow and reliable protection. Constructed from heat-resistant ABS-FR material with a patented 'Click & Fit' installation system, ensuring easy, tool-free setup. Suitable for various voltages, including 115V, 230V, and 24V, with a fan motor CSA approved for safety and durability. These filter fans feature Type 12 filter mats with G3 and G4 filtration efficiencies, providing excellent particulate removal. They are ideal for industrial enclosures needing effective ventilation and fire safety compliance.
Hammond Manufacturing PF11000T12LG24 Industrial Filter Fan Specifications:
- Housing and guard made of thermoplastic, UL 94 VO fire-rated material
- Dimensions: 109 x 109 x 62 mm (height x width x installation depth)
- Weight: 0.55 kg (1.21 lbs)
- Connection: 2 wires, 310 mm terminal strip
- Protection System: NEMA Type 12, IP 55 (when installed according to specifications)
- Fan motor: CSA approved, 11W or 20W options depending on model
- Voltage: 115V, 230V, or 24V options
- Airflow capacity: 17 CFM (PF11000 + PFA10000)
- Max static pressure: 38 Pa
- Filtration efficiency: 88-91% with G3/G4 filter mats (DIN EN 779, CEN)
- Fitting position: Vertical or any orientation
- Construction: Housing and guard of self-extinguishing thermoplastic
- Color: RAL 7035 Light Grey
- Certifications: UL listed, NEMA Type 12, IP 55
- Bearing type: Sleeve bearings suitable for continuous operation
Buy the Buy Hammond Filter Fan Part Number PF11000T12LG24 Online
Purchase the Hammond PF11000T12LG24 filter fan online today for reliable enclosure cooling and filtration. Engineered with UL-tested NEMA Type 12 sealing, heat-resistant ABS housing, and CSA-approved motors, this fan ensures safety, durability, and optimal airflow. It features easy 'Click & Fit' installation, suitable for multiple voltages, and provides high filtration efficiency with G3/G4 filter mats. Perfect for industrial applications needing robust, maintenance-friendly ventilation solutions—order now to enhance your safety and equipment longevity.
Get Hammond PF11000T12LG24 today—designed for efficient ventilation, easy installation, and long-lasting durability in industrial enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing PF11000T12LG24?
You can click on the BUY or RFQ button to purchase PF11000T12LG24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part PF11000T12LG24?
You can download the PF11000T12LG24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of PF11000T12LG24?
Hammond Manufacturing
