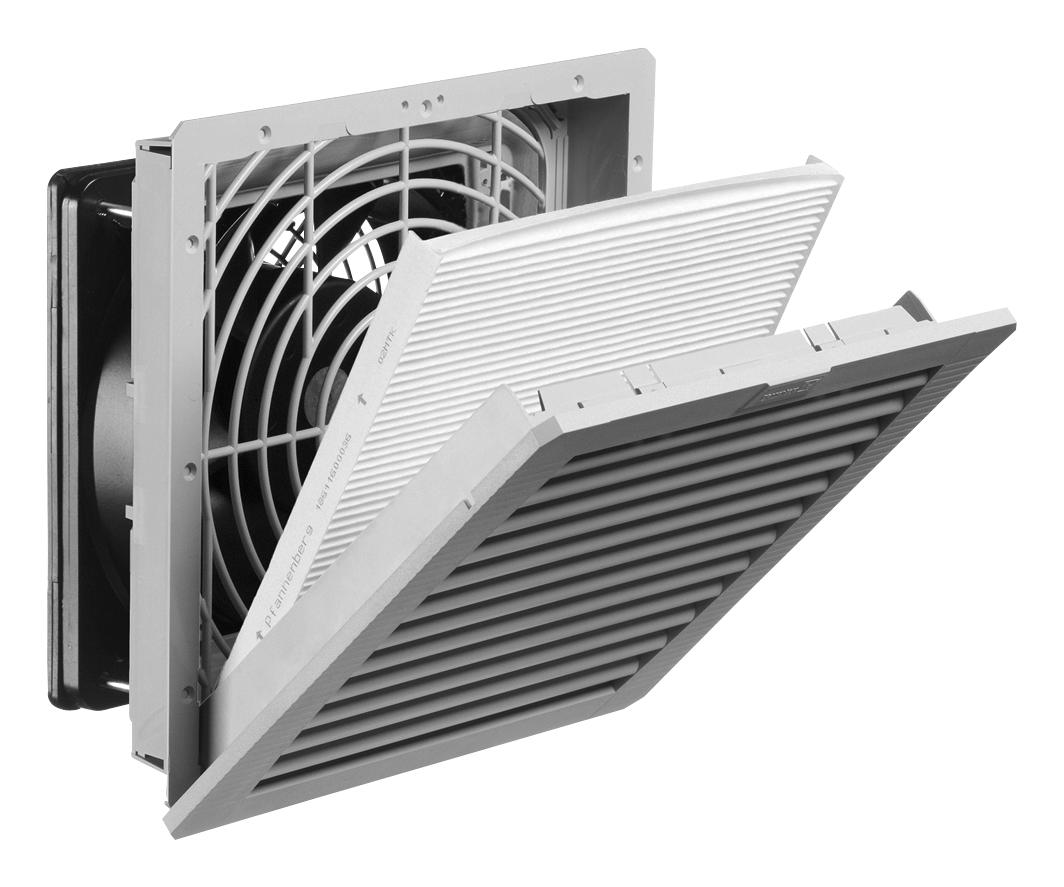

Hammond Manufacturing PF32000T12LG24 Enclosure Fan
The 65 CFM Filterfans from Hammond's PF GEN4 Series are designed for reliable enclosure ventilation with a NEMA Type 12 seal, UL testing compliance, and a patented 'Click & Fit' installation. Made from heat-resistant ABS-FR plastic with optional black grills, these fans feature CSA-approved motors and efficient airflow of up to 65 CFM. Suitable for various electrical enclosures, they offer robust protection, easy installation, and high filtration efficiency with G4 grade filters, ensuring effective dust and particulate removal while maintaining safe, cool operation.
Hammond Manufacturing PF32000T12LG24 Enclosure Fan Specifications:
- Airflow: 65 CFM (unimpeded), 38 CFM in combination with filters
- Static Pressure: Max 61 Pa
- Filtration Efficiency: 91%
- Filter Material: G4 (DIN EN 779)
- Dimensions: 202 x 202 x 87 mm (height x width x depth)
- Weight: 0.87 kg
- Housing: Sprayed thermoplastic, UL 94 VO fire rated
- Motor: CSA-approved, 20W at 115V, 18W at 230V, 5W at 24V
- Bearing Type: Sleeve or ball bearings
- Protection: NEMA Type 12, IP 55, UL Recognized
- Operating Temp: -15°C to +55°C
- Connections: Terminal strip cage clamp
- Color: RAL 7035 Light Grey
Buy the Hammond Series PF FAN: PF32000T12LG24
Purchase the Hammond Series PF32000T12LG24 enclosure fan online now to benefit from efficient airflow, high-grade filtration, and durable construction. This fan features an easy 'Click & Fit' design for quick installation without tools, making it ideal for protecting electrical enclosures from dust and particulate buildup. With UL recognition and a NEMA Type 12 seal, it provides dependable performance under challenging conditions. Enjoy fast delivery and quality customer support when you buy this reliable ventilation solution online today.
Order your Hammond Series PF32000T12LG24 fan today and ensure reliable enclosure ventilation with high filtration and easy installation.
Frequently Asked Questions
Where can I buy Hammond Manufacturing PF32000T12LG24?
You can click on the BUY or RFQ button to purchase PF32000T12LG24 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part PF32000T12LG24?
You can download the PF32000T12LG24 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of PF32000T12LG24?
Hammond Manufacturing
