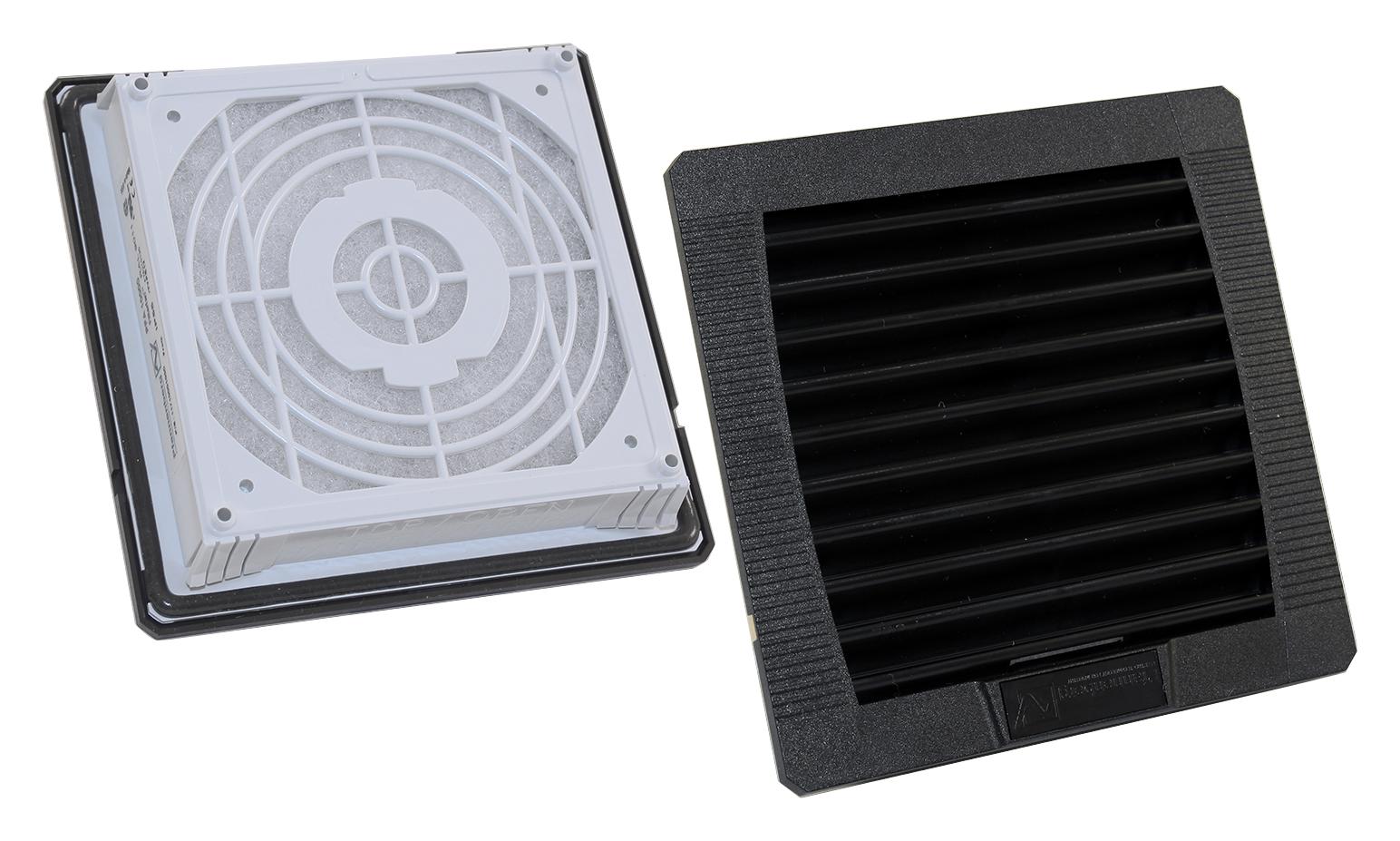

Hammond Manufacturing PFA10000BK industrial filter fan
The filter fan series offers a reliable solution for industrial enclosure cooling, featuring UL-tested NEMA Type 12 sealing, heat-resistant ABS-FR material, and a patented Click & Fit installation system. These fans include options with black grills and are CSA approved, ensuring safety and durability. They support a wide range of voltages including 115V, 230V, and 24V, with airflow capacities from 10 to 17 CFM. The compact and easy-to-install design makes them ideal for maintaining optimal operating temperatures in various industrial settings, supported by high filtration efficiency and UL 94 VO fire safety rating.
Hammond Manufacturing PFA10000BK industrial filter fan Specifications:
- Housing and guard made of sprayed thermoplastic, UL 94 VO fire-rated
- Dimensions: 109x109x62 mm (height x width x installation depth)
- Weight: 0.55 kg (1.21 lbs), with variants up to 0.7 kg
- NEMA Type 12, IP 55 rated when installed as specified
- Connection: 2 wires, 310 mm terminal strip
- Fitting position: vertical or any position
- Bearings: sleeve bearings
- Voltage options: 115V, 230V, 24V with corresponding power ratings from 2W to 20W
- Airflow capacity: 10-17 CFM, static pressure max 38 Pa
- Filtration efficiency: 88-91% (G3 to G4 grades)
- Type 12 filter mat, UL recognized
- Operating temperature range: suitable for industrial environments
- CSA approved fan motor, durable and heat resistant
- Color: Light Grey RAL 7035
- Additional accessories available include exhaust filters and replacement filters
Buy the Hammond 10000 Series – Reliable Industrial Filter Fans for Enclosure Cooling
Discover the Hammond 10000 Series industrial filter fans for dependable enclosure cooling. These UL-tested, heat-resistant fans feature easy Click & Fit installation, high filtration efficiency, and are CSA approved. Suitable for various voltages including 115V, 230V, and 24V, they deliver airflow capacities from 10 to 17 CFM, ensuring optimal temperature control in demanding environments. With durable thermoplastic housing and proven safety standards, purchase these efficient, space-saving fans online today for reliable performance and peace of mind in your industrial setup.
Buy Hammond 10000 Series filter fans now and experience unmatched reliability, easy installation, and effective enclosure cooling for industrial applications.
Frequently Asked Questions
Where can I buy Hammond Manufacturing PFA10000BK?
You can click on the BUY or RFQ button to purchase PFA10000BK from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part PFA10000BK?
You can download the PFA10000BK datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of PFA10000BK?
Hammond Manufacturing
