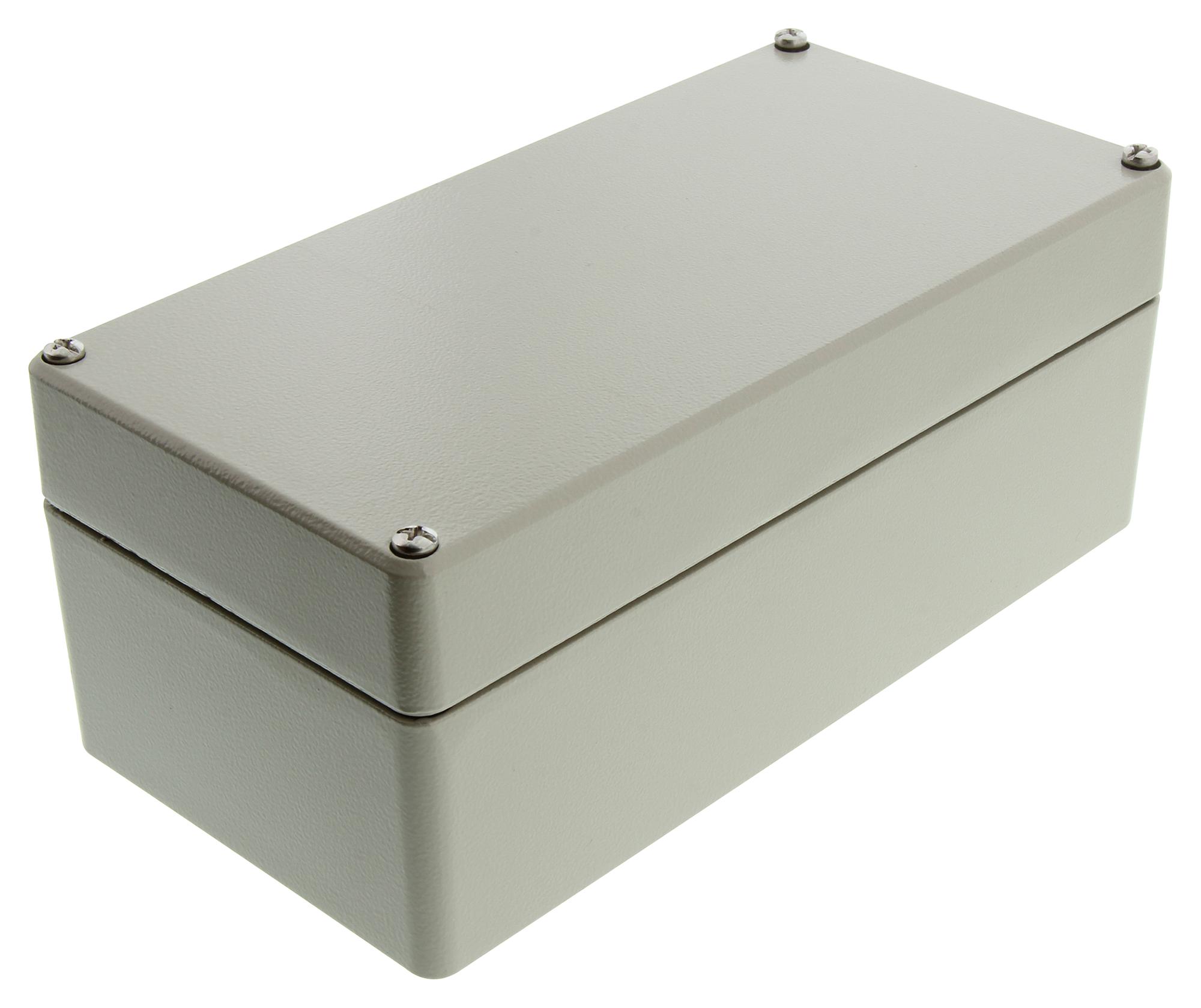

Hammond Manufacturing R100104000 industrial enclosure
The R100-104-000 is a durable die-cast aluminum enclosure designed for demanding industrial environments. Featuring a shallow lid and deep body, it provides reliable protection against dust and water ingress, with an IP66 / NEMA 4X rating. It includes externally mounted zinc die-cast feet that can rotate 90 degrees, facilitating flexible installation. The enclosure is secured with captive stainless steel screws and includes a neoprene gasket resistant to oils and petrol. Operating efficiently within -40°C to +80°C, it complies with IEC 60529 standards, making it suitable for mining, oil & gas, and industrial applications. Its sturdy construction ensures long-lasting performance.
Hammond Manufacturing R100104000 industrial enclosure Specifications:
- Material: Die-cast aluminum with textured polyester powder coat beige RAL 7032
- Protection Rating: IP66 / NEMA 4X
- Operating Temperature: -40°C to +80°C
- Gasket: Neoprene oil and petrol resistant
- Securing: Captive stainless steel lid screws
- Feet: Zinc die-cast, rotatable 90 degrees
- Design: Shallow lid, deep body
- Standards: IEC 60529, IP66, CSA-US Type 4
- Construction: Aluminum diecast G Al SI 12/ DIN 1725, Leg 230
Buy the Buy Hammond R100-104-000 Diecast Aluminum Enclosure Part Number R100-104-000 Online
Purchase the Hammond R100-104-000 aluminum enclosure online today to secure durable, IP66-rated protection for your industrial control and automation projects. Its corrosion-resistant die-cast aluminum construction, stainless steel screws, and neoprene gasket provide excellent protection against dust, water, and oil exposure. Designed with flexible mounting options, including rotatable zinc feet, this enclosure is ideal for mining, oil & gas, and harsh manufacturing environments. Experience long-lasting performance, ease of installation, and compliance with IEC 60529 standards by ordering online now.
Buy Hammond R100-104-000 aluminum enclosure now and ensure reliable protection for industrial control systems in harsh environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing R100104000?
You can click on the BUY or RFQ button to purchase R100104000 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part R100104000?
You can download the R100104000 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of R100104000?
Hammond Manufacturing
